SAIPEM CONSTELLATION Ultra deepwater rigid flexible pipelay, heavy lift, construction DP 3 vessel

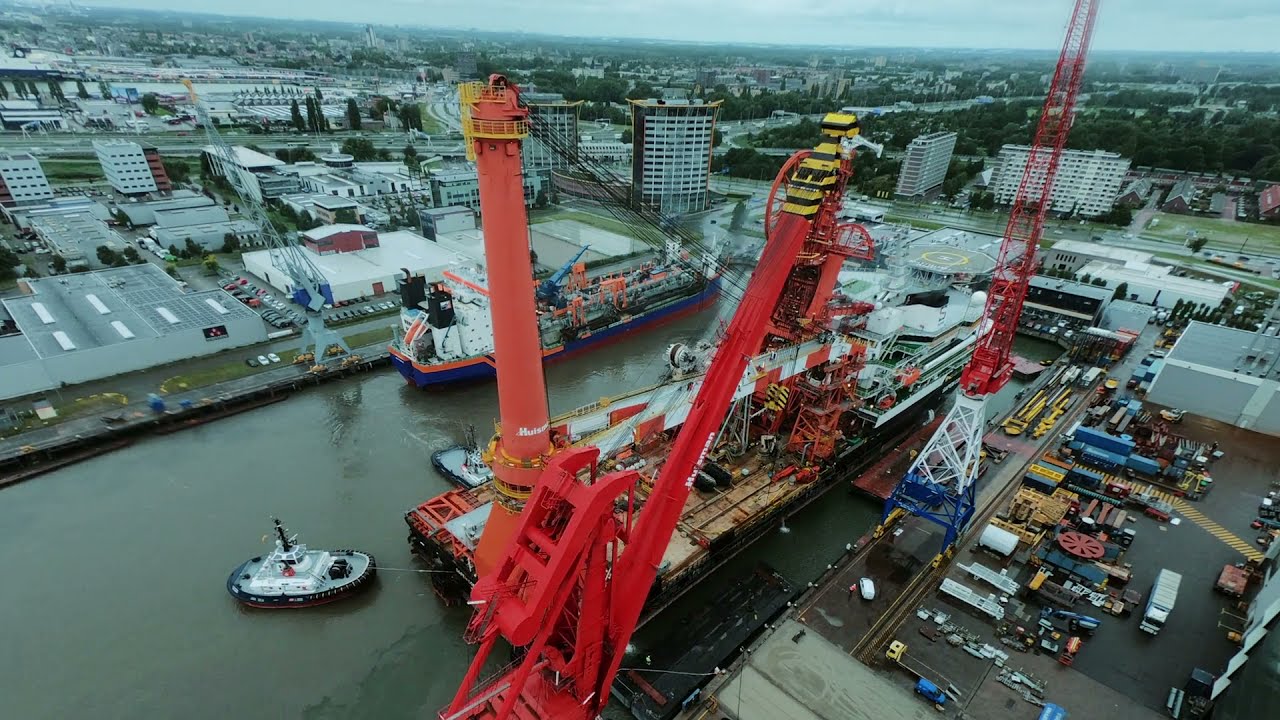

SPECIFICATIONS Length Overall: 178.0 m Breadth Moulded: 46.0 m Depth Moulded: 15.6 m Draft Max: 10.5 m Deck Area: 4,200 m2 without reels DP Dynpos Autro (DP3) Cranes: 1 x 3,000 mt Huisman Offshore Mast Crane Pipe Lay Type: Rigid and Flex Systems, through moonpool Pipe Lay Capacity: Rigid: 4” - 16” OD Flexible: 4” - 24” OD CLASSIFICATION Det Norske Veritas DNV 1A1 Ship Shaped Pipelaying Vessel, Dynpos Autro, ICE-1A, Clean DESIGN Held-SH, Crane, EC0, BIS, COMF (V3, C3), NAUT-OSV (A) PROPULSION / DP Stern Azimuth Thruster AFT: 2 x Rolls Royce Aquamaster, 5,500 kW ea Stern Azimuth Thruster Aft: 2 x Rolls Royce Aquamaster, 2,000 kW ea Retractable Thruster Fwd: 2 x Rolls Royce Aquamaster, 3,000 kW ea Bow Thrusters Tunnel Fwd: 2 x Rolls Royce, 2,700 kW ea Bow Thruster Tunnel Fwd: 1 x Rolls Royce, 1,420 kW ea DYNAMIC POSITIONING DP 3 System: KONGSBERG DP Position Reference Interface Taut Wire DGPS: 2 Laser Reference: 1 x CyScan, 1 x RadarScan Acoustic Reference: 2 Gyro: 3 Anemometer: 3 VRU: 3 ELECTRIC POWER GENERATOR 37MW through 12 gensets in 4 engine rooms CARGO DECK Deck Area: 4,200 m2 (without reels) ACCOMMODATIONS Berth / Cabin: 239 x 1 berth cabin Total: 239 men DECK EQUIPMENT Crane: Huisman Offshore Mast Crane Main hoist: 3,000 mt at 25 m radius Aux. hoist: 1,200 mt at 30 m radius Whip hoist: 1-fall 80 mt, 2000 m hook travel 2-fall 160 mt, 1,000 m hook travel Handling Crane: 1 x 100T (Static) / 70T (Dynamic) @ 6.1m PIPE LAY EQUIPMENT Type: Combined pipelay tower for reel lay and flex lay over a moonpool Tensioners: 2 x 400 mt (Rigid) or 2 x 260 mt Hang-off Clamp: 900 mt Pipe Storage: 4 x 1,200 mt reels for rigid pipe (removable) 2 x 1,250 mt under-deck carousels for flexible pipe A & R System: 2 x 600 mt traction winches, single or tandem use Steel Wire Rope Capacity: 3,800 m x 125 mm (Ø) each winch ROV 2 Shilling HD work class systems, 150HP, launchable from ROV hangars with dedicated moonpools LARS: 2 x launch and recovery systems inside the ROV hangars, water depth 3,000 m HELIDECK Dimensions: 27.5 m x 277.5 m, (Sikorsky S-92/S-61N) With its multi-lay system, superior manoeuvrability, DP3 System and Ice Class notation, the Constellation is the latest addition to Saipem’s fleet of world-class pipelay and heavy lift vessels. It is suitable for deep to ultra deepwater field development projects worldwide and is designed to deliver complex projects safely and efficiently.
