The Common Emitter Amplifier [Transistor TS 4]

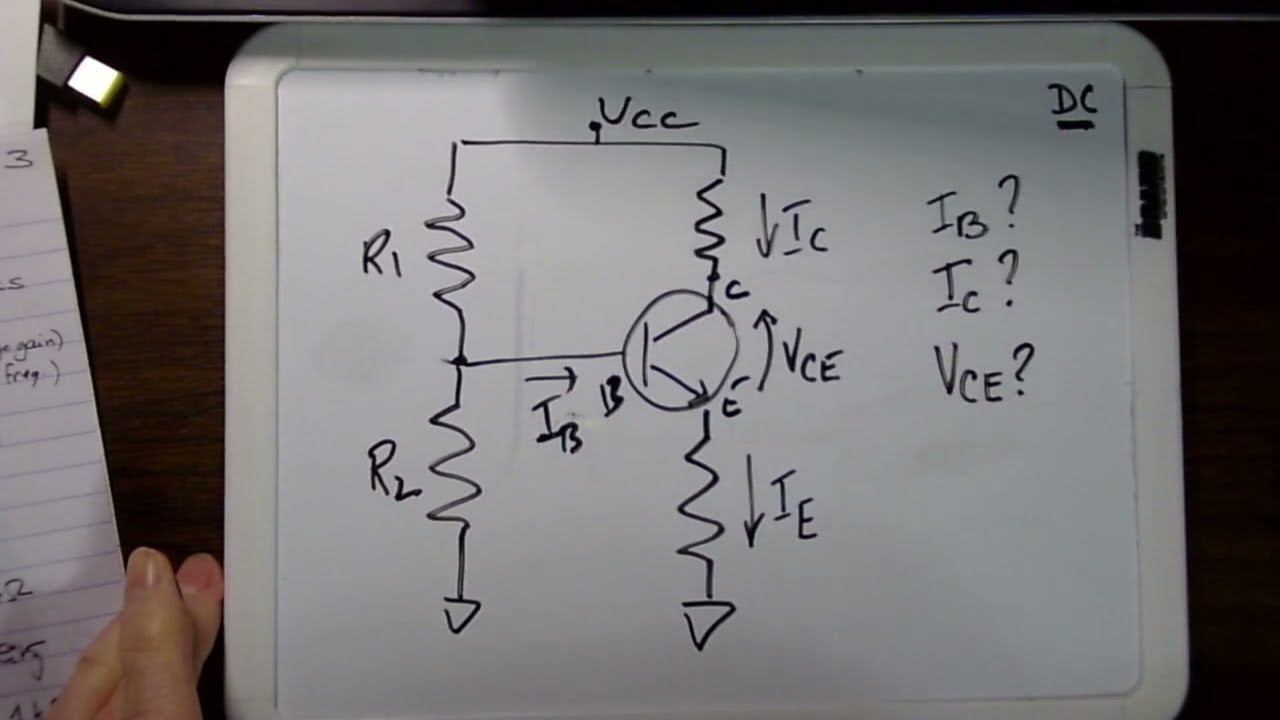

Video Name: The Common Emitter Amplifier [Transistor TS 4] Video Description: Transistor tutorial series episode 4. In this episode we introduce the common emitter transistor amplifier circuit, go over its biasing and small signal model then conclude with a step-by-step design and demonstration of the common emitter amplifier in the lab Concepts discussed: common emitter transistor amplifier overview simple biasing circuit for common emitter amplifier low frequency small signal analysis step-by-step design of a common emitter amplifier of a desired gain demonstration of that circuit in the lab changing the gain of that circuit and demonstrating the differences explore what happens when the signals become too large 00:00 Intro 00:24 Common Emitter Overview 02:13 Biasing Circuit 05:06 Small Signal Circuit 12:49 Gain of 10 Amplifier Design 20:12 Gain of 10 Amplifier Demonstration 22:38 Increase Gain to 100 24:08 Gain of 100 Amplifier Demonstration 26:28 Outro This video is part of the transistor tutorial series, a series that explores the fundamentals of transistors including BJT, MOSFETS, and JFETs
