LAPTOP ASSEMBLY AND TEAR DOWN AND THERMAL PASTE REPLACEMENT FOR DELL INSPIRON 15R 5537

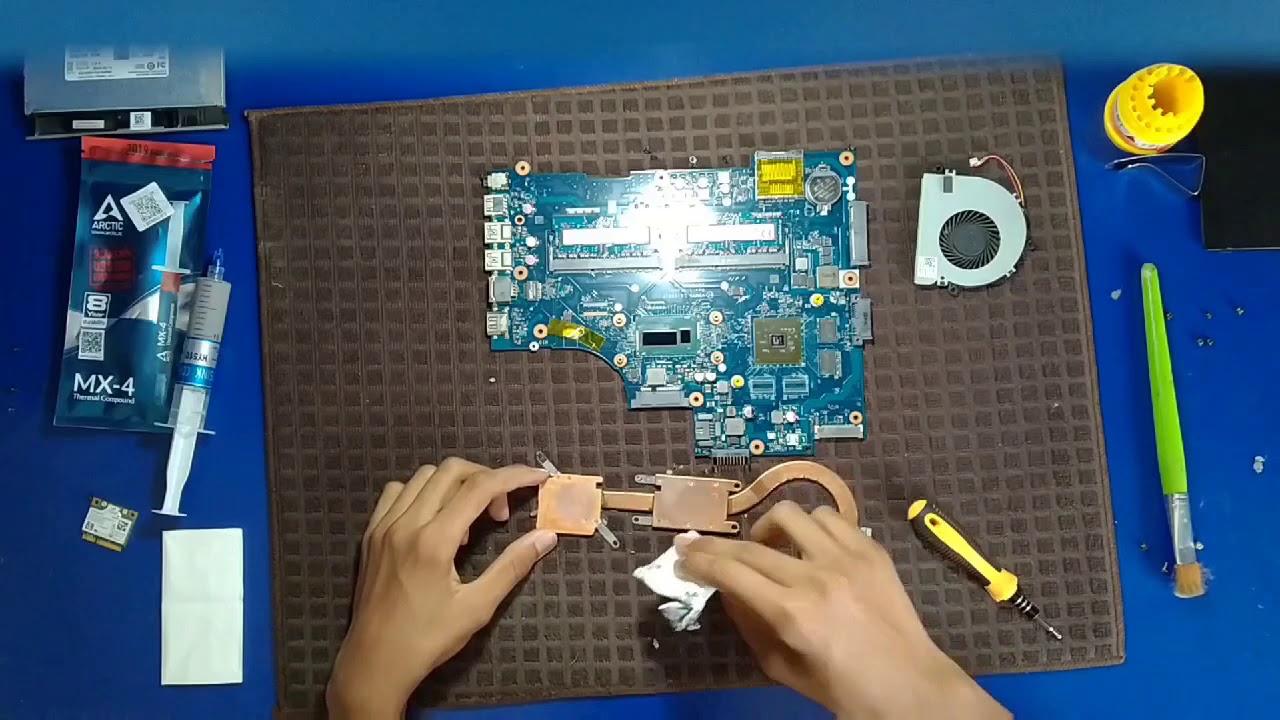

STEPS:- 1) UNLATCH THE BATTERY AND REMOVE THE BATTERY. 2)REMOVE THE 15 SCREWS AND REMOVE THE PANEL . 3)OPEN THE LAPTOP AND REMOVE THE KEYBOARD BY UNLATCHING THE LATCHES . 4)REMOVE THE 7 SCREWS AND REMOVE THE 2 RIBBON CONNECTORS. 5)UNCLIP THE WHOLE PANEL WHERE THE KEYBOARD WAS CONNECTED. 6)REMOVE THE 3 SCREWS ON THE MOTHER BOARD(2 SILVER SCREWS AND ONE BLACK) .THEN REMOVE THE DISC-DRIVE BY SLIDING IT OUT. 7)THEN REMOVE THE THREE RIBBON CONNECTORS THAT ARE IN THE BOARD . THEN DISCONNECT THE WLAN UNIT WHICH IS SITUATED ON THE TOP OF THE LAPTOP TOWARDS THE SCREEN. THE WLAN CHIP IS HELD IN BY A SCREW. 8) THEN SLOWLY WIGGLE THE BOARD AWAY FROM THE FRAME AND DISCONNECT TWO MORE CONNECTOR ON THE TOP RIGHT OF THE BOARD. 9) REMOVE THE 7 SCREWS ON THE BOARD AND REMOVE THE FAN CONNECTOR THEN REMIVE THE HEAT SINKS AND FAN( GIVE IT A CLEAN ). 10)INJECT ENOUGH QUANTITY OF THERMAL PASTE ON BOTH THE CHIPS(CPU AND GPU) FOLLOW THE STEPS BACKWARDS FOR REASSEMBLEY . THANK YOU AND HOPE THIS HELPED.....
