Steam Engine and Boiler with alternator off grid

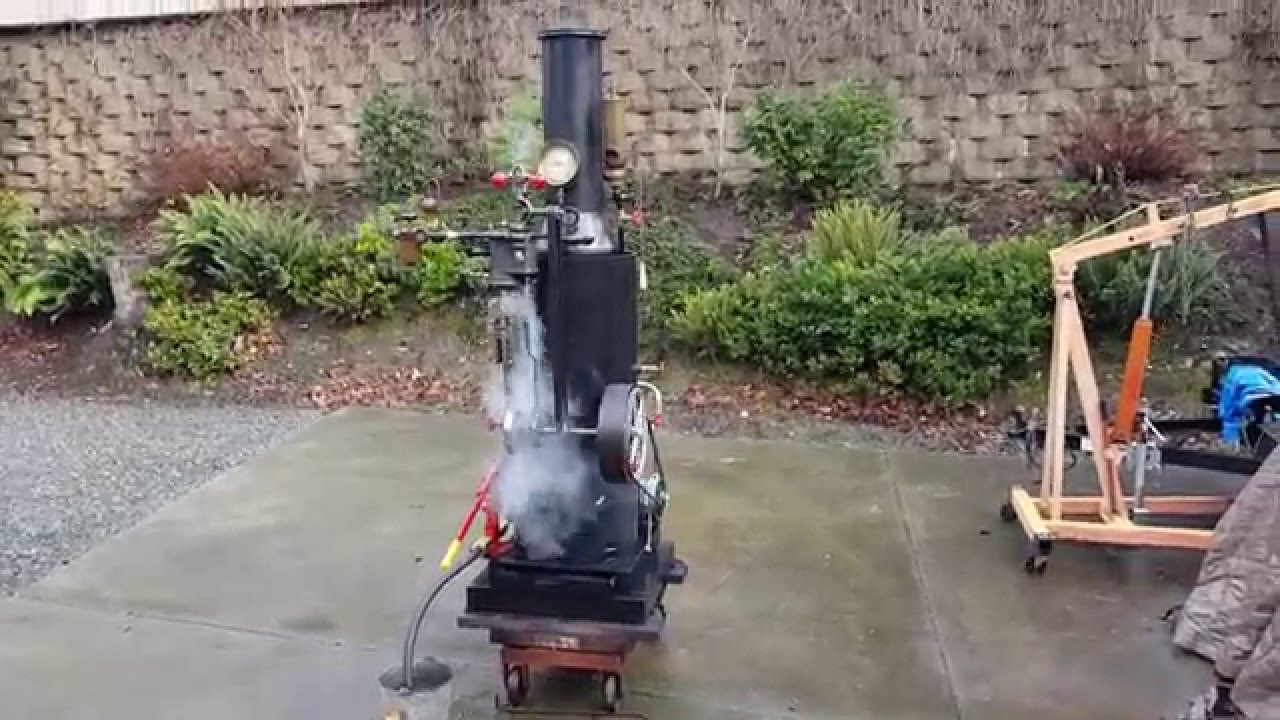

Live Steam Engine and Boiler with Alternator Off Grid I bought this steam engine and installed a 85 amp. alternator. I am selling it with one of my 20" boilers. WOW!!! FREE SHIPPING I bought this steam engine and installed a 85 amp. alternator. It comes with a Antique Swift oiler. The bore is 3 inch on the high pressure end and 5 inch on the low end piston with a 4 inch stroke. I estimate this engine will produce 5 hp depending on the boiler pressure. The height of just the engine is 28 inches and the length is 32. The flywheel is 12 1/2" dia. It weighs 150 lbs. It runs at 325 rpm wide open. This is with a fire-tube boiler. It also includes a brand new style of firebox with the ash pan built into it. It is brand new and weighs around 600 lbs. It measures 80" high to the top of the stack x 24" square at the base. The boiler itself is 20" dia. x 30" tall, made of 3/8" steel. The pop-off valve is set at 100 lbs. The boiler has twenty-two 1-1/2" dia. copper tubes rolled in that are 28" long. The firebox is 22" x 22" x 15" tall with plenty of room for large pieces of wood or lots of coal. The ash pan is built into the base. A feature on this boiler is the the blower ring. With the addition of this item, the draft is increased by ten times. The amount of air moving through the fire is amazing. It also includes a large hand pump with a 1 inch ram. This boiler will supply enough steam for a 5-6 Hp. engine. The lifting table is not included. Shipping by Fastenal freight has saved about half the cost of normal LTL freight haulers. FREE SHIPPING
