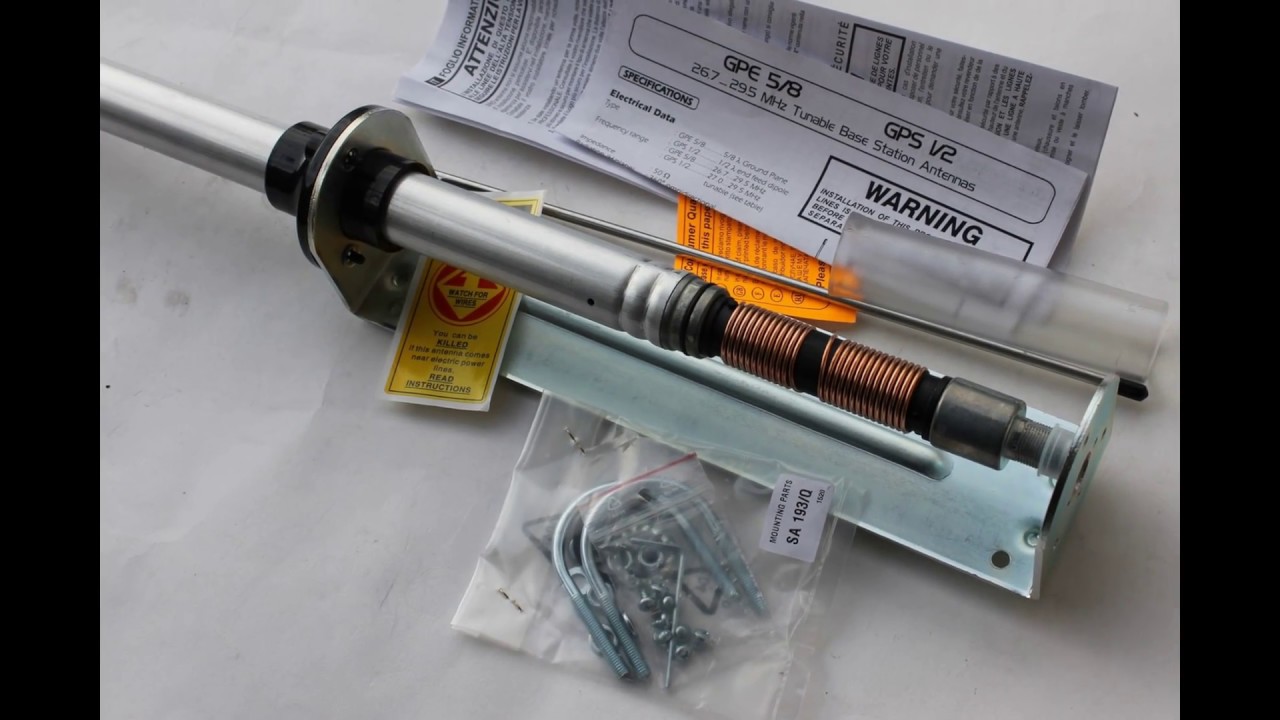

Sirio GPE 27 - instalacja antenowa bazy CB.

Features: CB & 10m Base station antenna, Omnidirectional Tunable by acting on the whip length Low radiation angle for excellent DX Coil protected by transparent cover Whip equipped whit waterproof jointing sleeve Made of aluminium alloy 6063 T-832 Protection from static discharges DC-Ground Electrical Data Type: GPE 27 5/8: 5/8λ ground plane Frequency range: tunable from 26.4 to 29.0 MHz Impedance: 50Ω Radiation (H-plane): 360° omnidirectional Polarization: linear vertical Gain: GPE 27 5/8: 1.2 dBd, 3.35 dBi Bandwidth @ SWR ≤ 2: ≥ 1600 KHz (140 channel) SWR @ res. freq.: ≤ 1.3 Max. power: 250 Watts (CW) continuous 750 Watts (CW) short time Feed system / position: Transformer DC-ground / base Connector: UHF-female Mechanical Data Materials: Aluminium, Steel, Copper, Nylon Wind resistance: 130 Km/h Wind load: GPE 27 5/8: 188 N at 150 Km/h Wind surface: GPE 27 5/8: 0.13 m² Height (approx.): 5950 mm Weight (approx.): 2500 gr Radial length (approx.): GPE 27 5/8 1320 mm Mounting mast: Ø 35-42 mm
