Chocolate Packing Machine

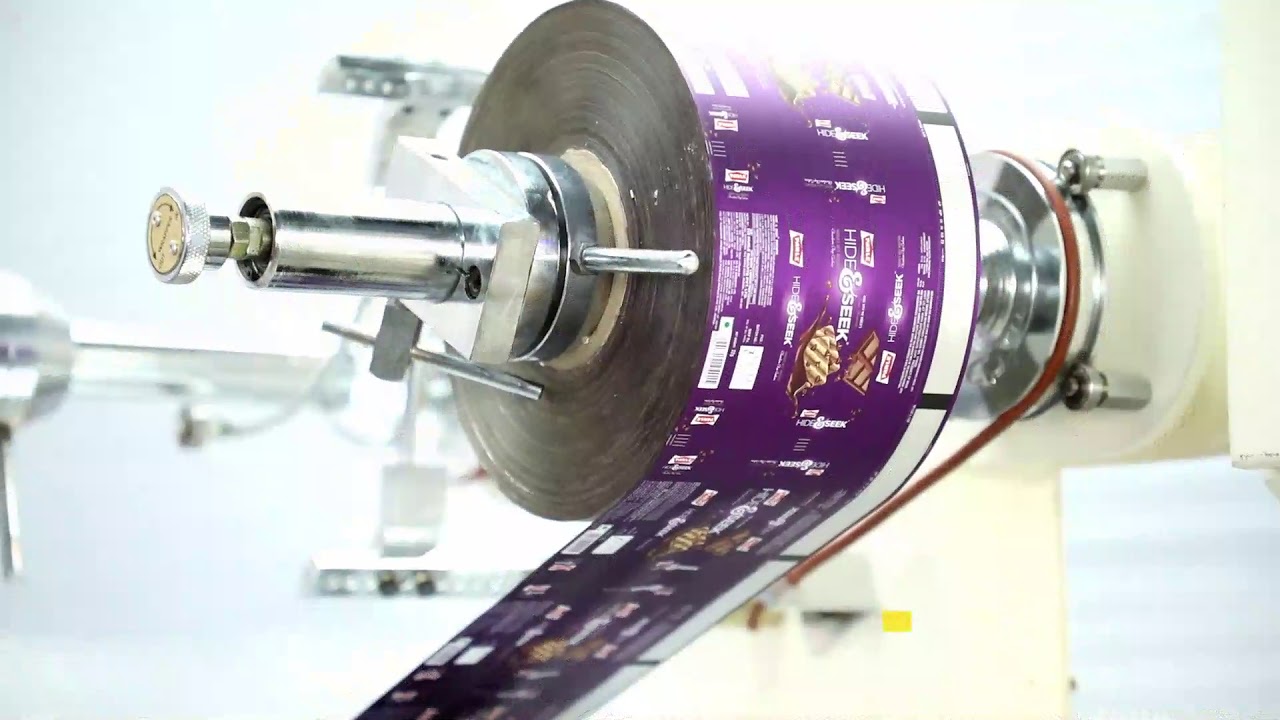

Features The main feature in a machine is that this machine is applicable to pack various sizes of products with tray and without tray also. 1) PLC Based machine 2) No manual setting for the print mark. 3) Auto setting from PLC for the print mark. 4) Two separate wrapper mounting system to reduce wrapper change time. 5) Schnider makes AC frequency drive used. 6) Schnider makes PLC used. 7) High temp. bearing used for Bottom sealing roller for longer life. 8) All contact part is stainless steel made. 9) Machine speed 60 ppm. 10) Minimum wastage. 11) All chains are diamond make. 12) Speed, shift output, total output can be display on HMI. 13) Gearbox Bonfigilioly makes. Specification 1) Length: 14 FT 2) Width: 3 FT 3) Height: 5.6 FT 4) Weight: 1000 Kg 5) Speed: 60 ppm Electrical specification 1) Main motor – 2 HP , 3 Phase 2) Supply voltage – 440 volt. 3) AC frequency drive – 2HP,2 kw 4) Roller Heater – 50v, 200 Watt 5) Pencil Heater – 50v, 150 Watt 6) Power Consumption – 2.5kw 7) Transformer – 30 amp 8) Wrapping material – BOPP Heat Sealable. 9) Maximum Reel dia – 325 mm 10) Core dia – 75 mm 11) Maximum width of wrapper – 300 mm
