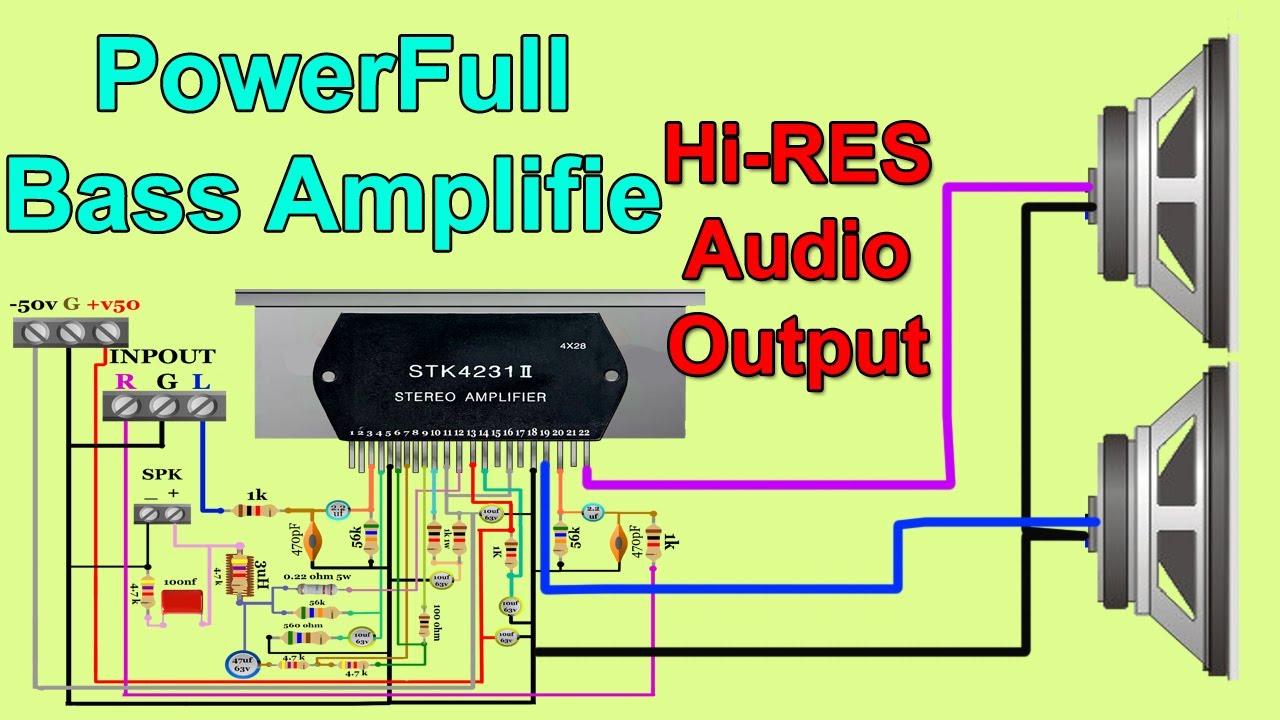

STK4231 200w stereo audio amplifier circuit | how to make amplifier at home |

' STK4231 200w stereo audio amplifier circuit | how to make amplifier at home | @ETElectricalTech Components List U1................................. STK4231II – Audio Amplifier Integrated Circuit R1, R2, R8 ................... 1K ohms - 1/8 W – brown, black, red R3, R4, R12, R16 ........ 56K ohms - 1/8 W – green, blue, orange R5, R6 .......................... 1K ohms - 1W – brown, black, red R7 ................................. 100 ohms - 1/8 W – brown, brown, black R9, R14 ........................ 4.7K ohms - 1/8 W – yellow, violet, red R10, R18 ...................... 4.7K ohms - 1W – yellow, violet, red R11, R15 ...................... 0.22 ohms - 5W – red, red, silver, gold , black R13, R17 ...................... 560 ohms - 1/8 W – green, blue, brown R19, R20, R21, R22 ..... 4.7 ohms - 18W – yellow, violet, gold R10 ............................... 4.7K ohms - 1W – yellow, violet, red C1, C2 .............................. 470pF – Polyester or Ceramic Capacitor C3, C4 .............................. 2.2uF – Electrolytic Capacitor C5, C6, C7, C8, 9, C10 .... 10uF - 63V – Electrolytic Capacitor C11, C12 .......................... 47 uF - 63V – Electrolytic Capacitor C13, C14 ......................... 100 nF – Polyester or Ceramic Capacitor L1, L2 .............................. 3uH inductor J1, J2 ................................ Kre Block Terminal Terminal 3-Way Triple Connector J1, J2 ................................ Kre Block Terminal Terminal 2-Way Double Connector Others .............................. Printed Circuit Board, tin, wire, etc. Circuit Diagram Gerber Files https://drive.google.com/file/d/1YkpC... '''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''' My other ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,, Factbook Page ↯↣   / nzelectro786   ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,, #ETElectricalTech
