20-11-01, DSS Reverse Osmosis Plant - Used Dairy Equipment

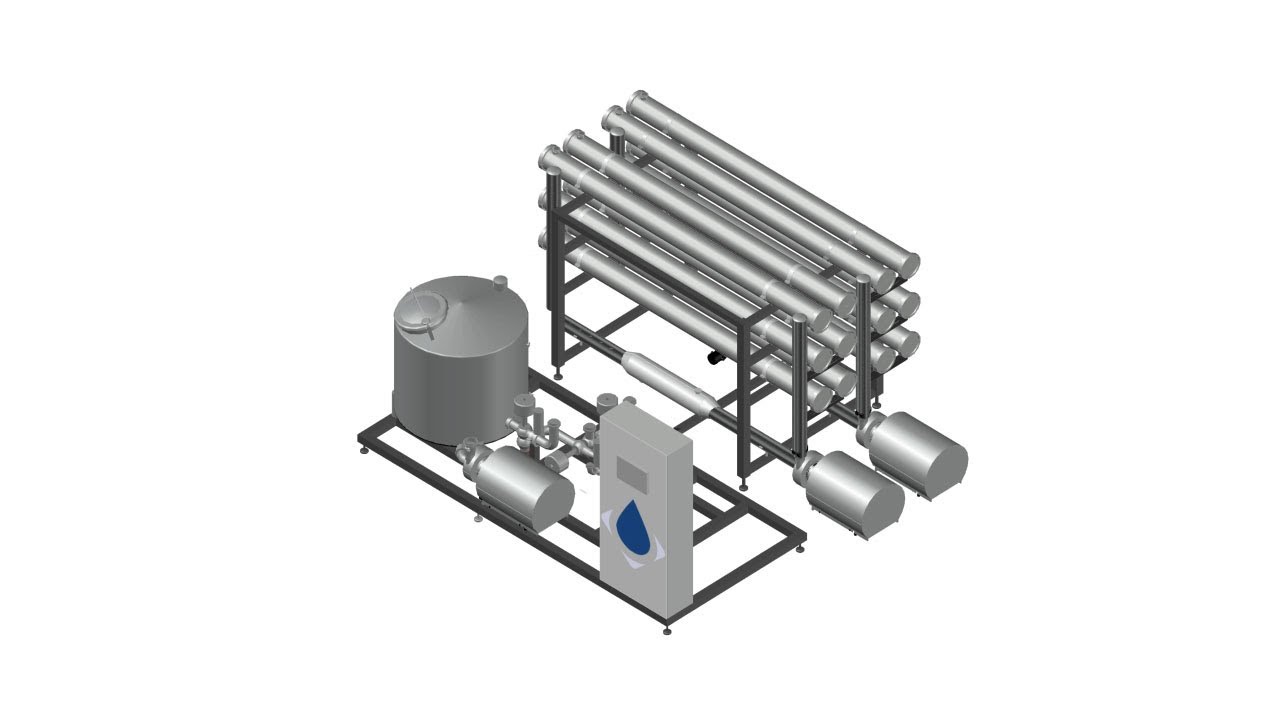

Offer number: 20-11-01. Reverse Osmosis Filtration Plant complete skid mounted. 2 Stages. Previously used for the filtration of sweet whey. Concentration up to 24% TSS in retentate (infeed: 12.000 kg/h, permeate: 9.033 kg/h and retentate: 2,967 kg/h with 24% TSS). Concentration 20% (infeed: 14.000 kg/h, permeate: 9.837 kg/h and retentate: 4.163 kg/h with 20% TSS) Complete line existing out of 2x infeed bag filters of 50µm, closed level tank 185/115 liter, Siemens flowmeters, pumps (Grundfoss CRN20-14 of 15 kW, Grundfoss CRN20-16SF of 18,5 kW, Alfa Laval LKHPF-25/166 of 7,5 kW, Alfa Laval LKHPF-25/177 of 7,5 kW and Grundfoss CRN10-5 of 2,2 kW), loop 01 has 4 filter houses of 8’’ with 4x4 spiral wounded membranes, loop 02 has 2 filter houses of 8’’ with 4x4 spiral wounded membranes, interconnecting piping / valves, independent CIP system with dosing pump, pH adjustment system with pH-transmitter and control panel with controls, Siemens S7 PLC, Siemens Touch Screen panel with several languages and frequency converters. Including plate cooler on the retentate outlet (Alfa Laval, M6-Mbase, up to 5.000 ltr/h) and effluents system for removal of the drain water. Flow chart and instruction, spare parts and electric manuals available.
