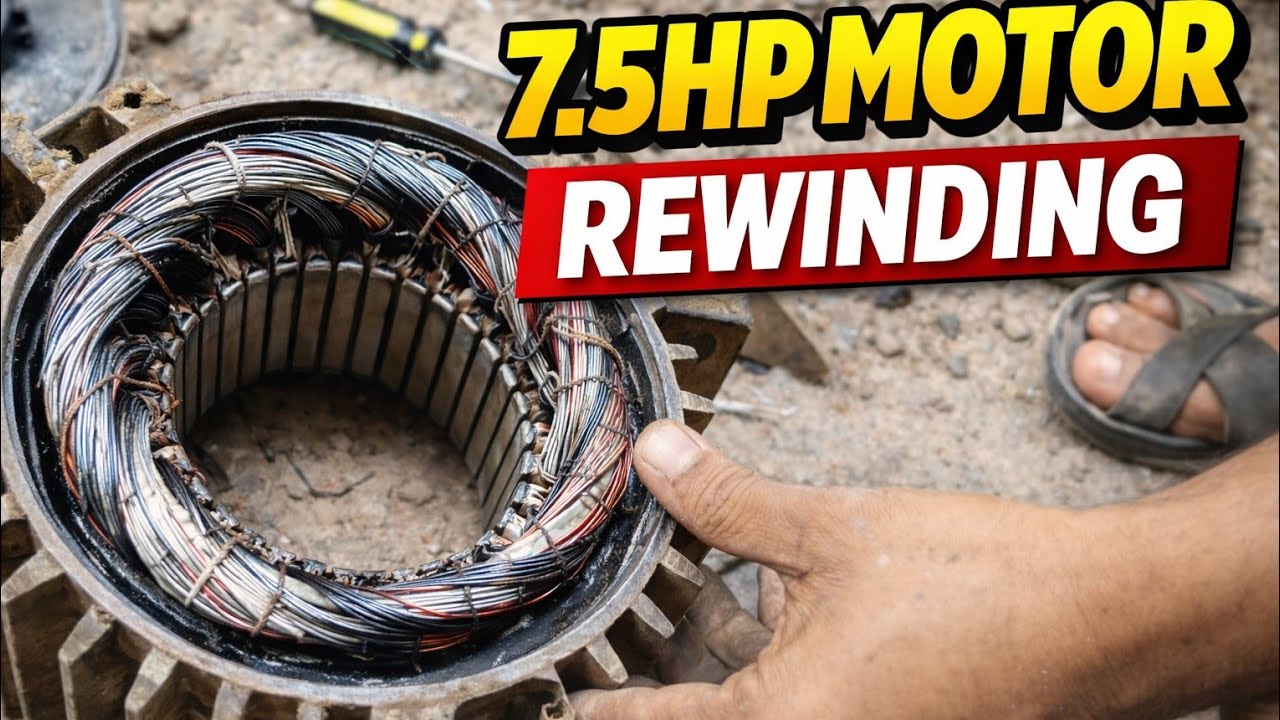

7.5 HP Motor Rewinding & Connection! (36 Slot, 1400 RPM) | Full Step-by-Step Guide with Double Wire Data @AffanElectricSolution ‪@Alitechwork‬ ‪@coil_magnet‬ ‪@GurjinderElectricWorks‬ ‪@windertrucker6230‬ ✍️ Description: Need the ultimate guide to rewinding a powerful industrial motor? In this video, we take you through the entire process of rewinding a 7.5 HP (Horsepower), 3-Phase, 1400 RPM induction motor with 36 slots! We share the exact winding data and show you the challenging concentric pattern and the final Delta (
abla) connection. This is a must-watch for anyone doing electric motor repair, motor winding training, or industrial maintenance. 🛠️ Motor Winding Data (The Secret Specs Revealed!): We are using a specialized double-wire technique to achieve high efficiency and performance. | Specification | Details | |---|---| | Motor Type | 7.5 HP, 3-Phase Induction Motor | | RPM | 1400 RPM (4-Pole Design) | | Stator Slots | 36 Slots | | Coil Pitch | Concentric Winding (1-8, 1-10, 1-8 Pattern) | | Wire Size | Double Wire: 21 SWG + 22 SWG | | Turns per Coil | 48 Turns | | Phase Connection | Delta Connection (
abla) | ➡️ What You Will Learn in This Video: How to properly record and calculate motor winding data. The correct technique for using double wire (21 + 22 gauge). Installing a 4-pole concentric winding pattern in a 36-slot stator. Making perfect inter-coil connections. The step-by-step process for forming the Delta Connection. Tips for insulation, varnishing, and final testing. ✅ Don't forget to Like, Share, and Subscribe for more professional motor repair and electrical engineering tutorials! #motorrewinding #3phasemotor #7.5HP #1400RPM #MotorWindingData #ElectricMotorRepair #DeltaConnection #36SlotMotor #DIYmotor 🔗 Check out our playlist for more advanced motor winding guides!
