CPX-E-EP x1 + CLogix + EthIP + 16DI.8DO.4AI.4AO + GEN + Status Bits & Explicit Messaging

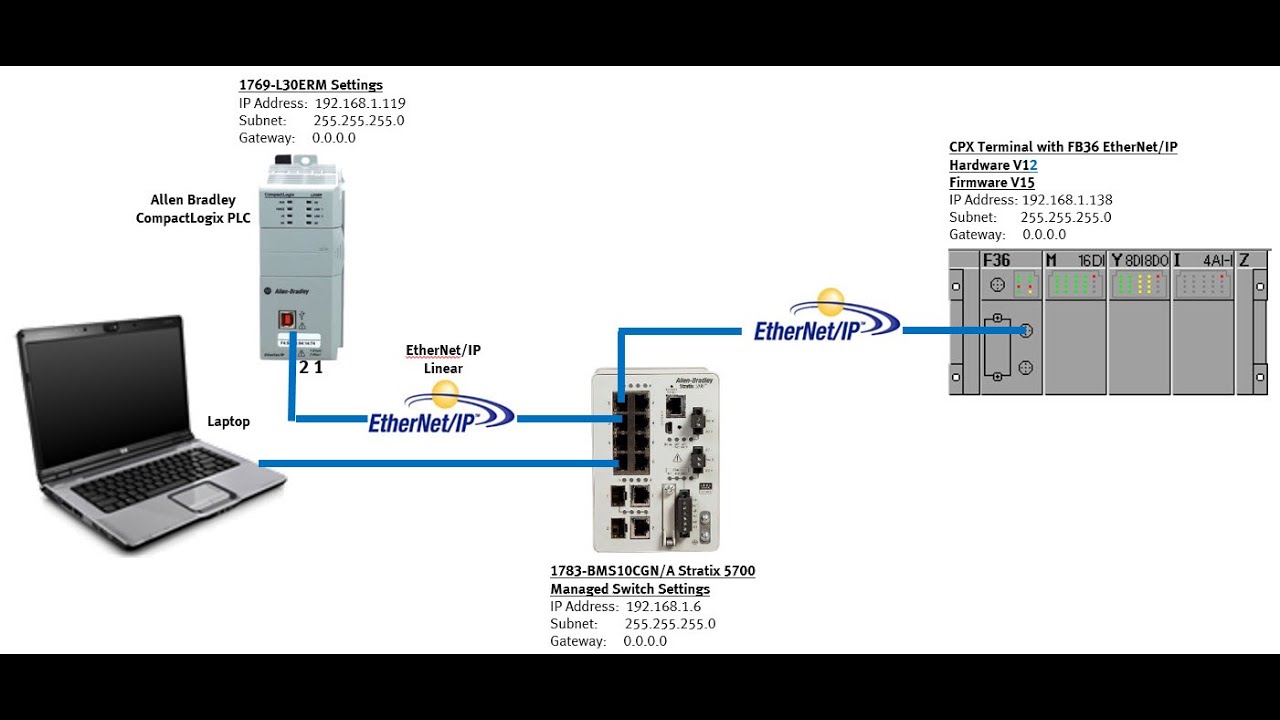

This video describes how to connect from a Festo CPX-E-EP terminal to an Allen Bradley ControlLogix or CompactLogix PLC. Additionally, diagnostic methods are described with emphasis on using Status bits and Explicit Messaging. The purpose is an attempt to help you accelerate the programming and commissioning of your application using Festo CPX-E-EP. The control method is EtherNet/IP Fieldbus. The Rockwell sample code is programmed with RSLogix5000 V20 (Version) software. Additional software (Festo Automation Suite, Festo Field Device Tool, Festo Maintenance Tool Software) used to configure, and commission are also discussed. There are some files (within a “zip” file) to accompany this video that can be retrieved at the following Google drive link: https://drive.google.com/file/d/1NbwC... (0:00) Overview (1:07) CPX-E-EP Festo Website software downloads (4:20) CPX-E-EP with FAS (Festo Automation Suite) (19:12) CPX-E-EP with FMT (Festo Maintenance Tool Software) (24:03) CPX-E-EP with FFT (Festo Field Device Tool) and Firmware update (29:38) CPX-E-EP with Web Server (30:55) Rockwell Import of FMT CPX-E-EP Exported L5K file (37:10) CPX-E-EP Festo Website literature downloads (38:35) CPX-E-EP Process Data (Status, Analog, Digital) and data type structures (46:08) CPX-E-EP Input Mapping (49:18) CPX-E-EP Output Mapping (50:32) CPX-E-EP Ethernet/IP Connection monitor and Status bits (58:24) CPX-E-EP Status and Diagnostics Object Explicit Messaging (1:07:20) CPX-E-EP Diagnostics Trace Object Explicit Messaging (1:10:15) CPX-E-EP Electronic Data Sheet (EDS) file and Installation Another YouTube video also exists that specifically describes procedures to use the FMT (Festo Maintenance Tool Software) to export a “*.L5K” Rockwell file to allow the creation of a generic module within ControlLogix Software. FMT L5K Export CPX-E-EP to RSLogix Import.mp4    • FMT L5K Export (CPX-E-EP) to RSLogix Import
