BRX (Do-More) PLC PID Ramp Soak Profile

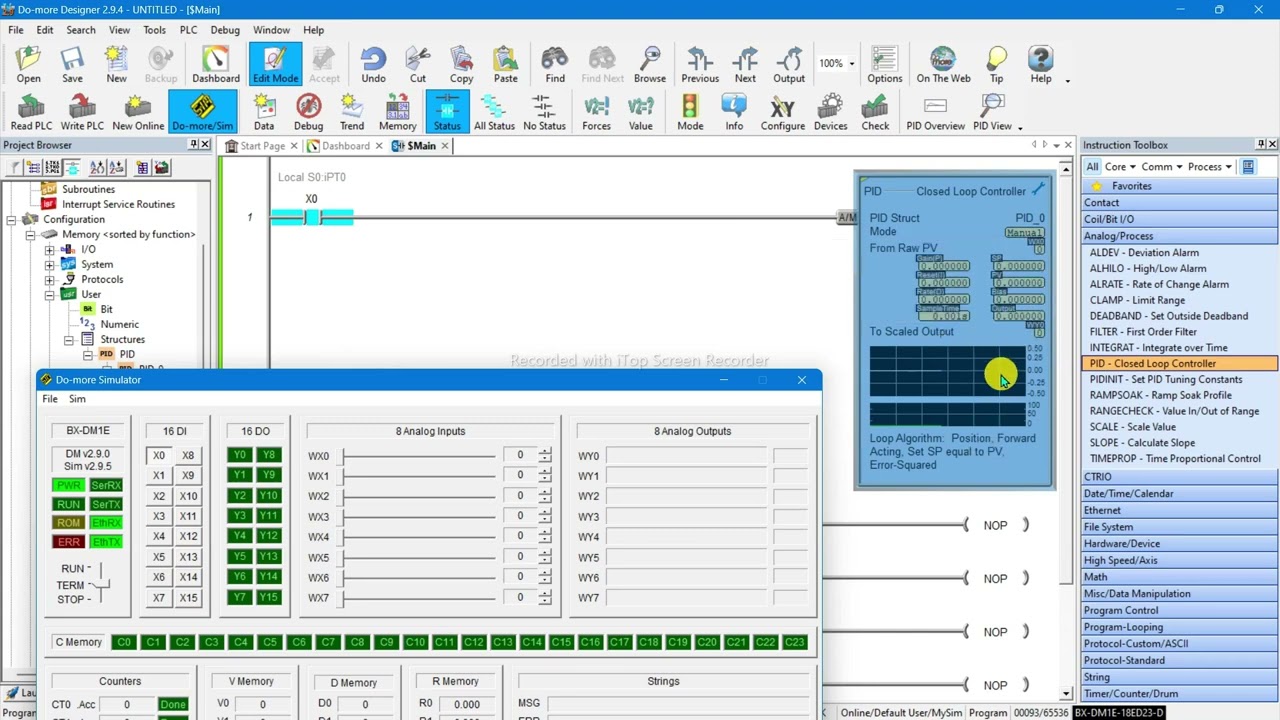

We will be looking at the BRX Do-More PID Ramp Soak Profile instruction in the PLC. The purpose of a ramp soak profile is to make gradual, controlled changes in temperature (Ramp), followed by a temperature hold (Soak) period. We will be using our Proportional-Integral-Derivative PID Instruction with PWM output that we looked at last time to apply the ramp/soak profile. Using the immersion heater in a cup of water to keep the temperature at a constant value, we will be adjusting the profile of the temperature as we increase the setpoint (Ramp) and hold that setpoint for a predetermined time. (Soak) We will then decrease that temperature back to the original setting. (Ramp) We will be modifying our existing program from our PID with the PWM Output post. Let’s get started. More information can be obtained on our website. This includes all of the links mentioned in this video. https://accautomation.ca/brx-plc-pid-... The entire BRX Series PLC can be found at the following location: https://accautomation.ca/series/brx-d... Here are the individual posts with video links: Installing the Software https://accautomation.ca/brx-plc-inst...    • BRX Do-More PLC Installing the Software   Establishing Communication https://accautomation.ca/brx-plc-esta...    • BRX Do-More PLC Communication Setup - USB,...   Updating Firmware Video    • BRX Do-More PLC: Connect & Update via USB,...   Numbering Systems and Addressing https://accautomation.ca/brx-plc-numb...    • BRX Controller Memory Allocation | Do-More...   First Program https://accautomation.ca/brx-plc-firs...    • Master Your First BRX PLC Program: Start-S...   Monitoring and Testing the Program https://accautomation.ca/brx-plc-moni...    • BRX Do-More PLC Monitoring and Testing the...   Online Editing and Debug Mode https://accautomation.ca/brx-plc-onli...    • Master BRX PLC Programming: Live Edit & De...   Timers https://accautomation.ca/brx-plc-timers    • BRX Do-More PLC Timer Instructions Program...   Counters https://accautomation.ca/brx-plc-coun...    • BRX Do-More PLC Counters   Compare Instructions https://accautomation.ca/brx-plc-comp...    • BRX Do-More PLC Compare Instructions   Math Instructions https://accautomation.ca/brx-plc-math...    • BRX Do-More PLC Math Instructions   Program Control https://accautomation.ca/brx-plc-prog...    • BRX Do-More PLC Controller Program Control   Shifting Instructions https://accautomation.ca/brx-plc-shif...    • BRX Do-More PLC Shifting Instructions   Drum Instruction https://accautomation.ca/brx-plc-drum...    • BRX Do-More PLC Drum Instruction Sequence!🚦   Serial Communication – Modbus RTU to Solo Process Temperature Controller https://accautomation.ca/brx-plc-seri...    • BRX Do-More PLC Serial Communication – Mod...   Data Logging https://accautomation.ca/brx-plc-data...    • Easy BRX Do-More PLC Data Logging Tutorial...   Email – Text SMS Messaging Gmail https://accautomation.ca/brx-plc-emai...    • BRX Do-More PLC Email – Text SMS Messaging...   Secure Email Communication    • BRX SSL/TLS Secure Email Setup: Complete I...   AdvancedHMI Communication – Modbus TCP https://accautomation.ca/brx-plc-adva...    • Build a FREE HMI for BRX PLC Using Modbus ...   Analog IO – System Configuration https://accautomation.ca/brx-plc-anal...    • BRX PLC Analog IO: Unlock Advanced Control...   HTTP JSON Instructions https://accautomation.ca/brx-plc-http...    • BRX Do-More PLC HTTP JSON Instructions   Analog Dusk to Dawn Program https://accautomation.ca/brx-plc-anal...    • BRX Do-More PLC Analog Dusk to Dawn Program   INC DEC 512 Registers for DMX512 https://accautomation.ca/brx-plc-inc-...    • Master DMX512 Channels with One Simple PLC...   PID with PWM Output https://accautomation.ca/brx-plc-pid-...    • BRX PLC PID Programming with PWM Time Prop...   There are several reasons why we are using the BRX Series Controller. Here are just a few. Standalone PLC with built-in I/O Built-in Data Logging Communication ability - Ethernet Port, RS232, RS485, USB - support for protocols such as Modbus RTU, Modbus TCP, ASCII, K-sequence (DirectLOGIC users), Custom Protocols (ASCII over serial, TCP or UDP over Ethernet) Built-in Analog input and output Integrated motion control High-speed counters Powerful instruction set (Video of Instructions in software) Ability to expand the system with a variety of modules Part of the Do-More series of PLCs which use the same free software. (Do-More Designer) Integrated simulator in the software capable of external communications for testing The BRX series of programmable logic controllers consist of four different units. They differ depending on the Inputs and Outputs built into the unit and if it has the ethernet port. No I/O Micro PLC unit – (BX ME) 10 Point Micro PLC unit – (BX 10/10E) 18 Point Micro PLC unit - (BX 18/18E) 36 Point Micro PLC unit - (BX 36/36E) These CPUs (Central Processing Units) are also known as MPU (Multi-Processing Units) because of communication capabilities. https://www.accautomation.ca
