Client Demonstration – Innovative Piano Mechanism Design - Sketch Picture, Solid Bodies to Assembly

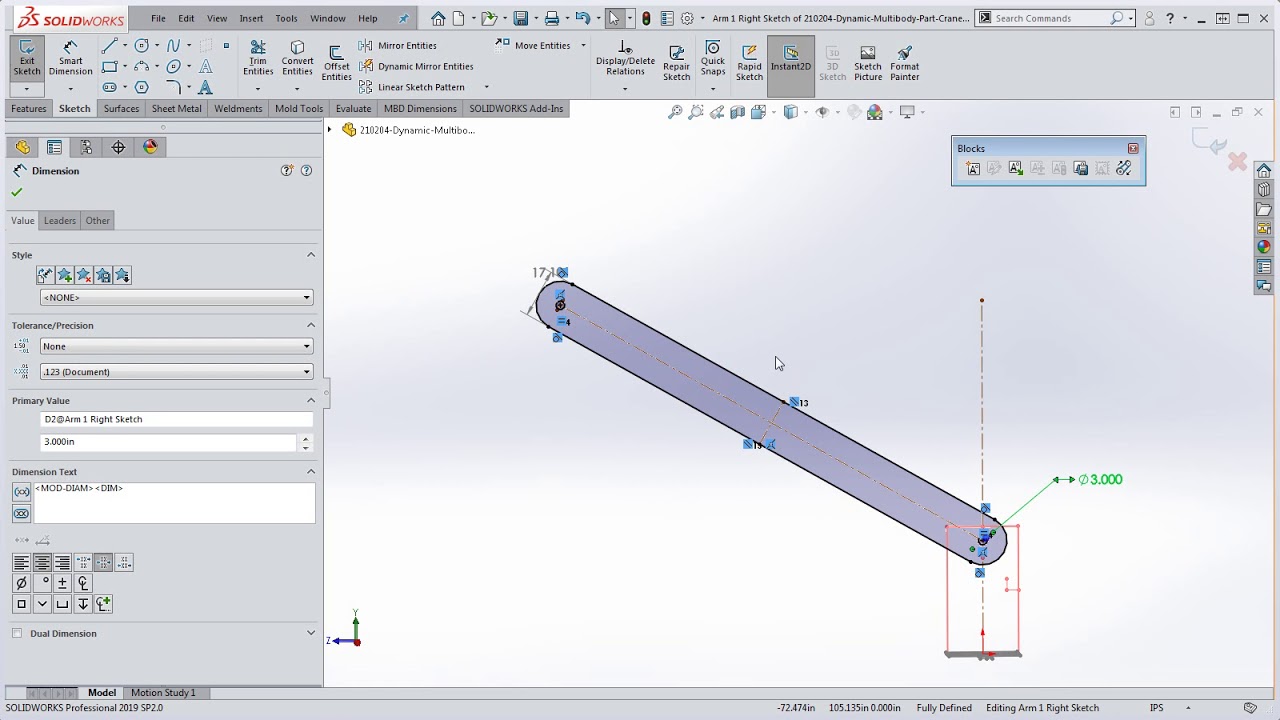

This is an example of a client demonstration of a SolidWorks Solid Body Part – for an Assembly Design – using Sketch Picture to help model all of the various Solid Bodies of this innovative new piano mechanism design. While using Solid Bodies in a SolidWorks assembly one only has to insert ONE part – where each of the different components of the assembly are the different Solid Bodies of the part. One big advantage of this is that all of the static components of the assembly can simply be inserted to the assembly origin, fixed to the origin, aligning axes – simple and easy. The Sketch Picture was used to estimate proportionality with the dimension of one part being known – and all of the other ones with estimated lengths that are rounded up or down through the Smart Dimension. For additional CAD (Computer Aided Design) instructional videos and online classes – in AutoCAD, Revit Architecture, and SolidWorks - please visit: https://edandi.com/media-center-2/ and    / @designinnovations
