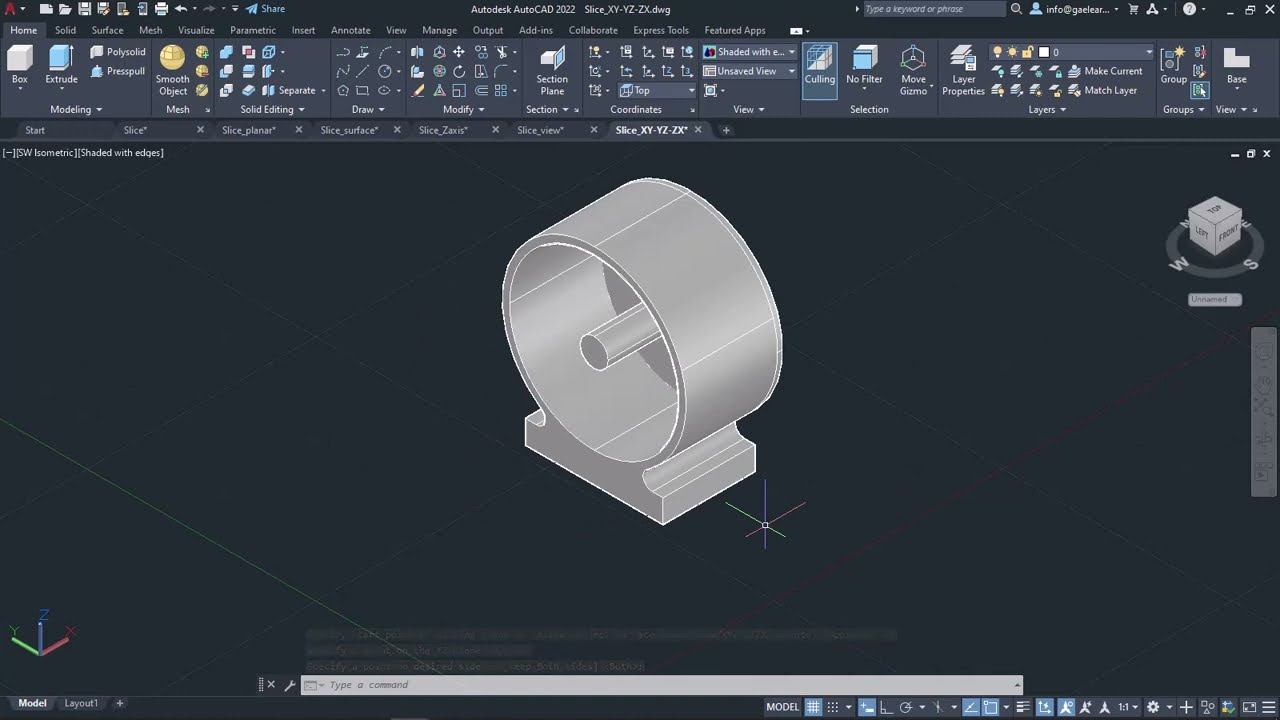

Subtract, Intersect and Union tools (AutoCAD 3D Tutorials)

In AutoCAD, the Subtract, Intersect, and Union tools are essential features used for modifying and combining 2D and 3D objects to create complex shapes and cutouts. These tools offer various operations to manipulate geometry and achieve precise results. Subtract: The Subtract tool allows you to subtract one or more selected objects from another object, resulting in a new object with the subtracted portions removed. This tool is useful when you need to create cutouts or remove specific regions from a solid or surface object. By selecting the objects to subtract and the target object, you can easily create voids or openings in the target object. Intersect: The Intersect tool helps you find the common area or overlap between selected objects. It creates a new object that represents the intersection of the selected objects. This tool is particularly handy when you want to extract specific regions where objects overlap or create new objects based on the shared areas. It is commonly used in architectural design, mechanical engineering, and other fields where precise intersections are required. Union: The Union tool enables you to combine two or more selected objects into a single object, merging their boundaries and creating a unified shape. This tool is beneficial when you want to create complex objects by joining separate components or when you want to merge overlapping regions into a single continuous shape. By selecting the objects to union, you can create a single object that retains the properties and characteristics of the original components. These three tools, Subtract, Intersect, and Union, are essential for creating intricate designs and performing Boolean operations in AutoCAD. They allow you to modify existing objects, create complex cutouts, extract shared regions, and merge components into cohesive structures. By leveraging these tools, you can achieve precise control over your designs and produce visually appealing and functional models.
