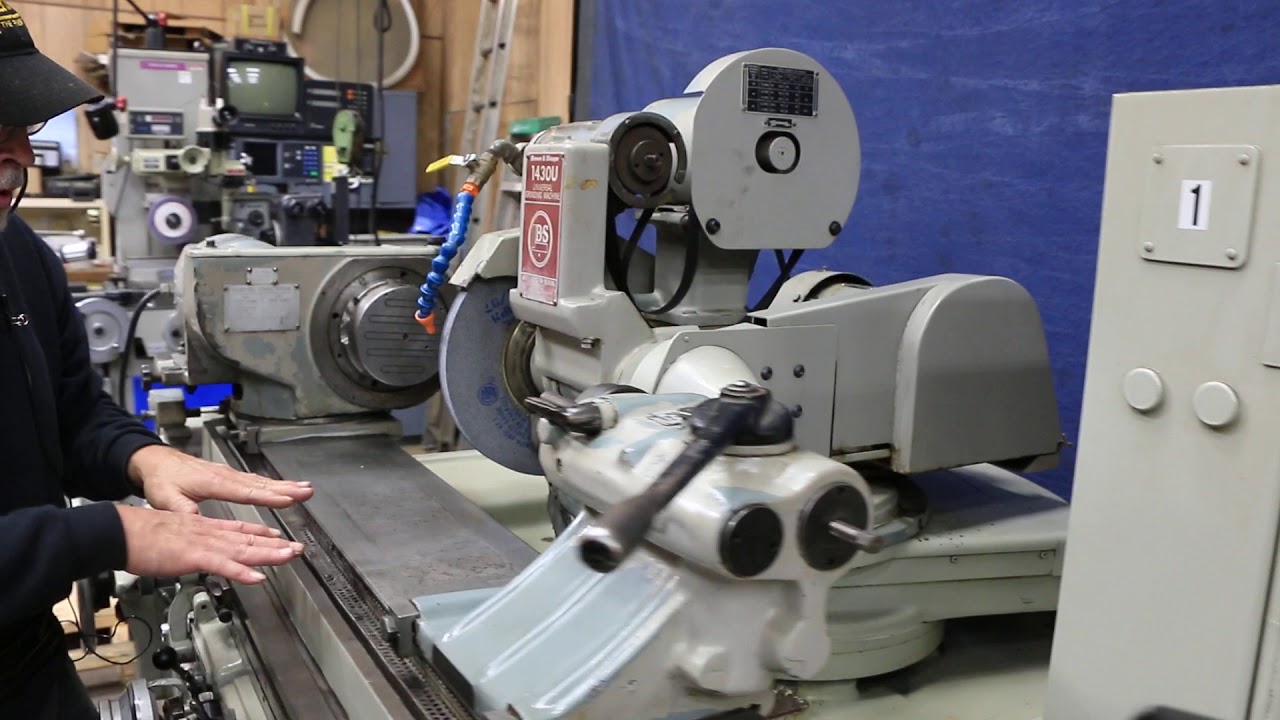

BROWN & SHARPE UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER -1

Please check our website for photos or any additional information: http://www.machineryvalues.com/xdetai... 10" X 24" BROWN & SHARPE "MADE IN USA" "HIGH-PRECISION" UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER MODEL: 1024U S/N: 521-1024-377 NEW: 1987 SWING OVER TABLE .................................... 10" DISTANCE BETWEEN CENTERS, NOMINAL ..................... 24" DISTANCE BETWEEN CENTERS, MAXIMUM ..................... 26-3/4" WHEELHEAD SPINDLE SPEEDS (3) ........................ 2100, 2400& 2800 RPM GRINDING WHEEL SIZE ................................... 12" X 1" X 5" MINIMUM GRINDING WHEEL WIDTH .......................... 3/8" SWIVEL AT THE WHEELSLIDE .............................. 90 DEGREES EITHER WAY WHEEL SPINDLE SWIVELS ................................. 90 DEGREES EITHER WAY INFINITELY VARIABLE SPINDLE SPEEDS .................. 60 TO 600 RPM HEADSTOCK SPINDLE NOSE TAPER .......................... A2-5" HEADSTOCK SWIVELS EITHER SIDE OF ZERO ................. 90 DEGREES INFINITELY VARIABLE TABLE SPEED ..................... 3" TO 150" IPM TABLE PER REV. OF HANDWHEEL: SLOW ................................................ 0.1" FAST ................................................ 1.5" DWELL AT EACH OR ALTERNATE TABLE REV. ............... 0 - 2-1/2 SEC. TABLE SWIVEL, SCALES FOR ANGULAR SETTING ............ 8-1/4 DEG. SCALES-TAPER PER FT. ................................ 3-1/2" MAX. TRAVEL OF WHEELSLIDE ......................... 5" CROSSFEED HANDWHEEL GRAD. ........................... 0.00002" AUTOMATIC CROSS FEED, REDUCTION IN DIAMETER OR WORK AT EACH OR ALTERNATE REVERSALS ............ 0.0001" - .003" HAND FEED PER REV. OF HANDWHEEL: SLOW ................................................ 0.1" FAST ................................................ 0.3" TAILSTOCK SPINDLE TAPER ........................... #7 JARNO TAILSTOCK SPINDLE TRAVEL ............................ 5/8" APPROXIMATE WEIGHT ................................ 5,100 LBS MACHINE FEATURES: UNIQUE TO BROWN & SHARPE GRINDERS FEATURE - DOUBLE SWIVEL WHEELHEAD: THE WHEEL SPINDLE HEAD WHICH SUPPORTS THE EXTERNAL & INTERNAL GRINDING SPINDLES CAN BE SWIVELED TO WITHER SIDE OF ZERO. AN ADDITIONAL SWIVEL THROUGH 90 DEGREES IS PROVIDED AT THE WHEEL SLIDE. ANY COMPOUND SETTING REQUIRED IN COMBINATION STRAIGHT & TAPER OR DOUBLE TAPER GRINDING, O.D. OR I.D., CAN BE MADE QUICKLY & ACCURATELY. THE UNIVERSAL TURRET, WHICH SUPPORTS THE WHEEL SPINDLE HEAD, PROVIDES FURTHER ADJUSTMENT FOR CHANGE OF WHEEL LOCATION. THE TURRET SWIVELS ON THE WHEEL SLIDE, AND CAN BE LOCKED IN ANY OF FOUR POSITIONS. EACH CHANGE MOVES THE WHEEL 2". RIGHT HAND WHEEL MOUNTING PROVIDES FOUR ADDITIONAL WHEEL POSITIONS. DUAL RIGHT OR LEFT END WHEEL MOUNTING INFEED HANDWHEEL GRADUATED TO READ TO 0.000020" HYDRAULIC TABLE TRAVERSE AUTO INFEED OF WHEELHEAD @ TABLE REVERSALS ADJUSTABLE TABLE DWELL SELF-CONTAINED HYDRAULIC SYSTEM OIL CHILLER UNIT (FAN COOLED) EQUIPPED WITH: SWING DOWN INTERNAL GRINDING ATTACHMENT W/SPINDLE WORKHEAD w/DUAL DEAD/LIVE HEADSTOCK SPINDLE COOLANT SYSTEM MOTORS ARE 3/60/230-460 VOLTS MACHINE IS PRESENTLY WIRED FOR VOLTS ** SUPERIOR CONDITION - JUST BEAUTIFUL! ** ** F.O.B. OUR CUSTOMER'S CALIFORNIA LOCATION **
