How to Find the Resultant Force - Components and Resultants Parallelogram Rule - Statics Problem 2

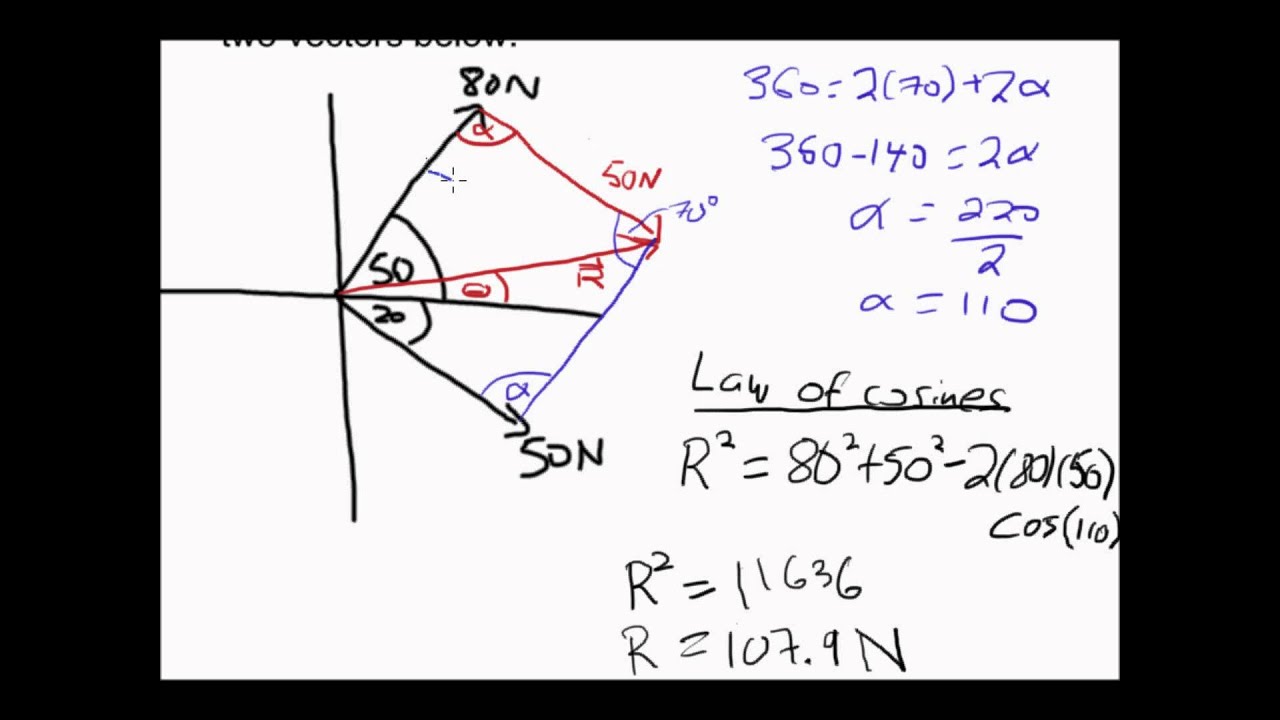

SUBSCRIBE to my channel for similar videos and problem walkthroughs. Make sure to leave a LIKE if this video was helpful. Please check out videos on the channel, as we cover many different topics. In this video, we find the resultant force value, location angle, and direction from the given component vectors. This problem is resolving 2 component forces to make on final combined resultant vector via the Parallelogram Rule. Problem statement: The two forces P and Q act on bolt A. Determine their resultant Problem walkthrough steps: Draw a quick free body diagram Form a parallelogram by copying and pasting the component forces Draw in the resultant from corner to corner -Calculate the angle opposite the resultant force -Use the law of cosines to find the value of the resultant -Use the law of sines to find the angle of the resultant off of one of the components -Use this angle to find the resultant angle off of the x-axis Topics of this problem include: Free Body Diagram (FBD) Solve a statics components and resultants problem via the Parallelogram Rule. Resultant from 2 component forces Resultant from 2 component vectors Vector Addition Force combination Vector combination Vector Mechanics Law of cosines Law of sines Determining resultant angles Beer Johnston sample problem 2.1 Engineering statics 2D components and resultants problem 2 Professor Engineer Professor_Engineer
