HOW TO MAKE ACME THREAD IN SOLIDWORK.(ADD THREAD PROFILE).

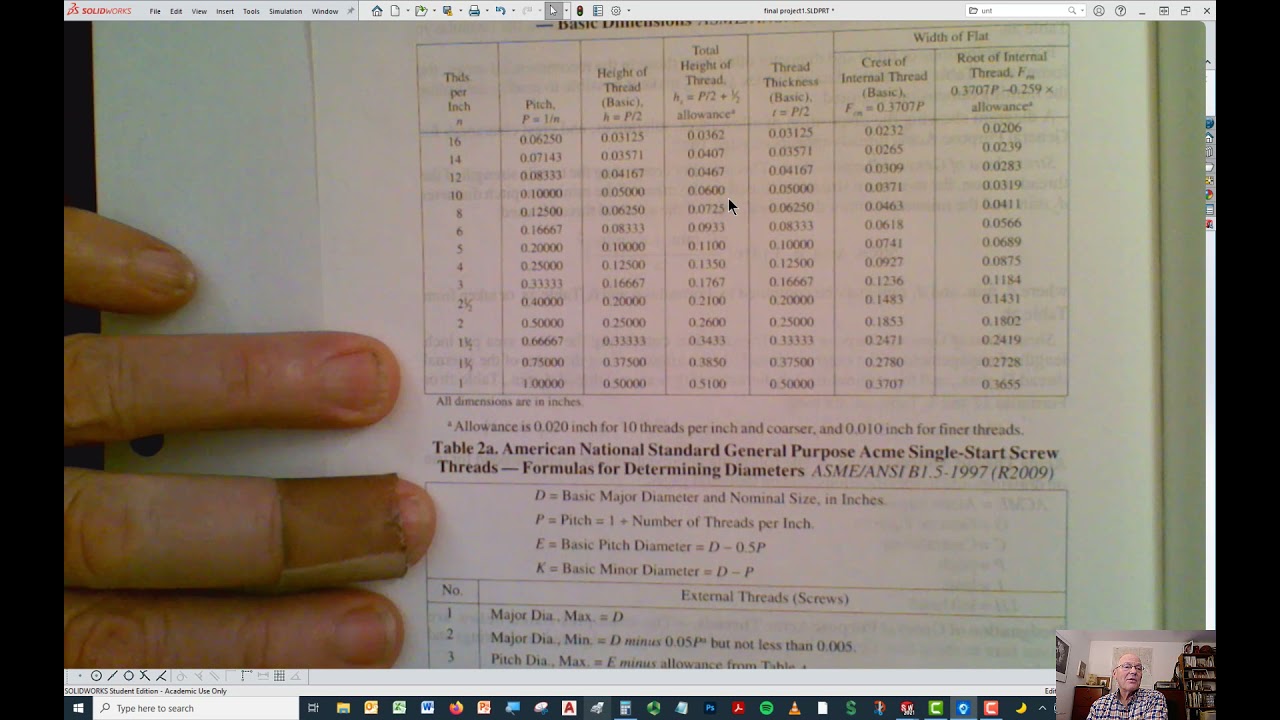

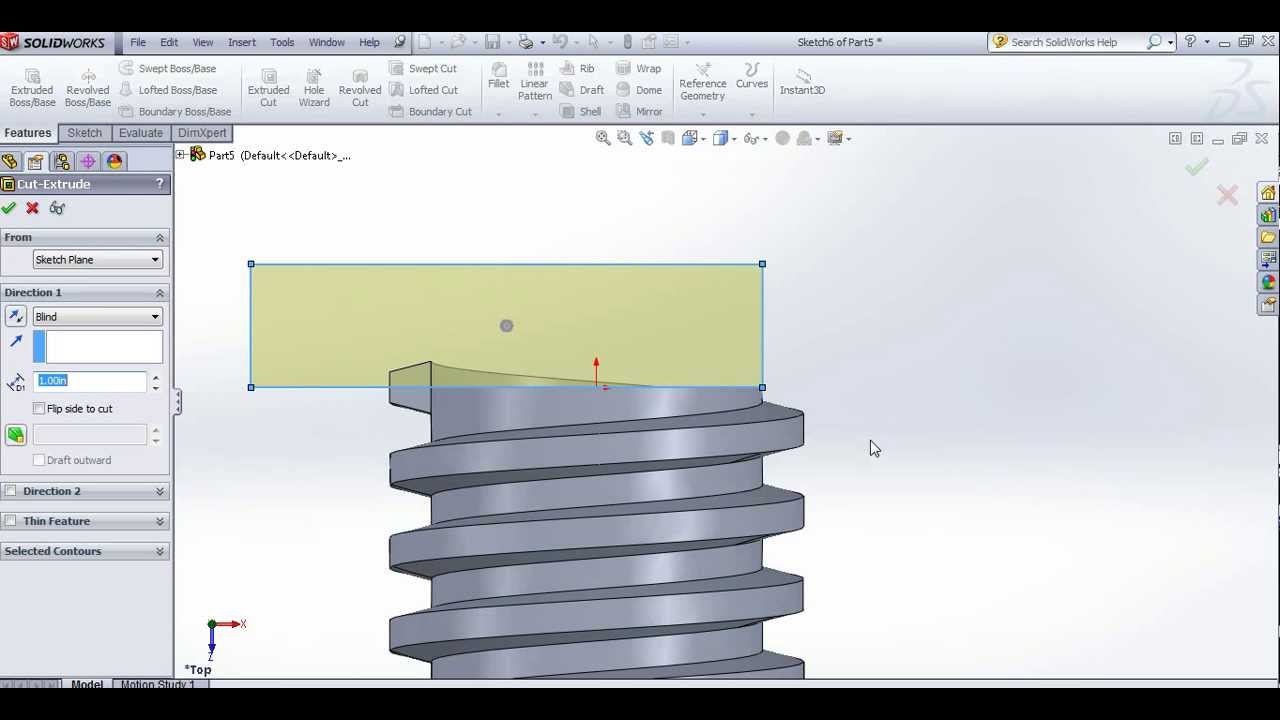

SOLIDWORK TUTORIAL NO #19 / HOW TO MAKE ACME THREAD IN SOLIDWORK. ======== IN THIS TUTORIAL I WILL EXPLAIN HOW TO USE THIS HOLE VIZARD FIATURE AND MAKE ACME THREAD AND YOU CAN MAKE ALL TYPE OF THREAD USE THIS METHOD IN SOLIDWORK. IN THIS TUTORIAL WE MAKE A 1 ACME THREAD PROFILE IN THREAD PROFILE FOLDER. I WIL ALSO GIVE PATH OF THIS THREAD PROFILE FOLDER. (THIS PC)---(LOCAL DRIVE_ C)---(Program Data)---(SOLIDWORKS)---(SOLIDWORKS 2016)---(Thread Profiles) NOW GO INSIDE THIS THREAD PROFILE AND COPY THIS METRIC DIE.SLDLFP FILE AND PASTE IN THIS THREAD PROFILE FOLDER.NOW RENAME THIS FILE AS A METRIC ACME THREAD AND OPEN IT IN SOLID WORK AND EDIT THIS PROFILE AND MAKE ACME MEANCE TREPAZODIAL shape TYPE PROFILE AND DIAMENTION OF THIS PROFILE IS HIGHT IS 0.5*PITCH MIDPOIN OF THREAD IS 0.5*PITCH THREAD TEATH LENGT IS 0.37*PITCH DEGREE BETWEEN 2 THREAD IS 29’. IN THIS TUTORIAL WE MAKE THREAD ON OD MEANCE OUTER SURFACE OF CYLINDER IF YOU NEED INSIDE THREAD MEANCE ID (INSIDE DIAMETER) THEN ALL PROCESS SAME BUT COPY METRIC TAP.SLDLFP THIS FOLDER AND EDIT THIS FILE AS A METRIC THREAD ACME AND OPEN AND EDIT AND MAKE THREAD LOCATION IN CYLINDER INSIDE HOLE THEN SELECT THREAD AND THIS FILE THAN THREAD ARE DONE . IF YOU CAN FACED PROBLEM IN INTERNAL THREADS THAN COMMENT PROBLEM I WILL SOLVE YOUR PROBLEM . IN THIS TUTORIAL WE MAKE ACME THREAD AND THIS ACME THREAD DIAMENTION IS PER THREAD HEIGHT AND LENGTH IS STANDARD IN VARIOUS DRAWING DIAMENTION IS LIKE THIS 0.5 * (MULTIPLY) OUR PITCH 1 MM. (IN THIS TUTORIAL FOR EXAMPLE WE USE 1 MM PITCH) HIGHT IS 0.5*P MIDPOIN OF THREAD IS 0.5*P THREAD TEATH LENGTH IS 0.37*P DEGREE BETWEEN 2 THREAD IS 29’. I WILL ALSO PUT DIAMENTION IN THUMNAIL. DIFFERENT EXAMPLE IN THIS TUTORIAL DIAMENTION. IN THIS TUTORIAL WE USE 1 MM PITCH. NOW, HIGHT IS 0.5*P ====0.5*1=0.5 THIS IS OUR THREAD HIEGTH MIDPOIN OF THREAD IS 0.5*P =====0.5*1=0.5 THREAD TEATH LENGTH IS 0.37*P=0.37*1=0.37 DEGREE OF THREAD IS 29’. (this 0.5 will be standard and pitch will be 1,2,10,20) THIS DIAMENTION ARE ONLY FOR ACME THREAD AND ALL DIAMENTION ARE IN MM. ======== we will learn below tools or features (OPTIONS) IN SOLIDWORK. 1.HOLE VIZARD FEATURE 2.THREAD 3.ACME THREAD ========= other tutorial link ...... 1.how to make a hexagonal cup using draft feature.    • CREO TUTORIAL #4 /HOW TO MAKE A HEXAGONAL ...   2.how to make a piston in solid work.2020    • SOLID WORK TUTORIAL NO#7 /HOW TO MAKE A PI...   3.how to make a flower pot.    • SOLID WORK TUTORIAL NO#7 /HOW TO MAKE A PI...   4. SOLIDWORK TUTORIAL NO#2 | HOW TO MAKE A SCREW WITH VARIABLE PITCH DIAMENTION.    • SOLIDWORK TUTORIAL NO#2 | HOW TO MAKE A SC...   5. SOLIDWORK TUTORIAL NO#1| HOW TO MAKE A KNURLING OPERATION IN SHAFT OR ROUND SURFACE.    • SOLIDWORK TUTORIAL NO#1| HOW TO MAKE A KNU...   6. CREO 4.0 TUTORIAL NO# 1| HOW TO MAKE A THREADS IN BOLT(HEXAGONAL)    • CREO 4.0 TUTORIAL NO# 1| HOW TO MAKE A THR...   7. SOLIDWORK TUTORIAL NO #5 | HOW TO MAKE A DRILL BIT.    • SOLIDWORK TUTORIAL NO #5 | HOW TO MAKE A D...   8. SOLIDWORK TUTORIAL NO # 6 | HOW TO MAKE A PROPELLER OR FAN BLADE.    • SOLIDWORK TUTORIAL NO # 6 | HOW TO MAKE A ...   9. CREO TUTORIAL # 5 HOW TO RENDER OBJECT IN CREO PARAMETRIC 4.0    • CREO TUTORIAL # 5 HOW TO RENDER OBJECT  IN...   10. CREO TUTORIAL # 6 HOW TO MAKE A SOAP CASE.    • CREO TUTORIAL # 6  HOW TO MAKE A SOAP CASE.   11. CREO TUTORIAL NO #7 ! HOW TO USE TWIST COMMAND & MAKE STRIP.    • CREO TUTORIAL NO #7 ! HOW TO USE TWIST COM...   12. SOLIDWORK TUTORIAL NO #14 / DESIGN AND ASSEMBLY OF SKATE BOARD.    • SOLIDWORK TUTORIAL NO  #14  / DESIGN AND A...   13. SOLIDWORK TUTORIAL NO #16 / BEGINNERS EXERCISE 7.    • SOLIDWORK TUTORIAL NO #16 / BEGINNERS EXER...   14. SOLIDWORK TUTORIAL NO #17 /BEGINNERS EXERCISE 8.    • SOLIDWORK TUTORIAL NO #17 /BEGINNERS EXERC...   #swtutorial19 #AcmeThreadinsolidwork #howtodrawAcmethreadinsolidwork #SolidworkTutorials ======== YOU CAN SUPPORT OUR CHANNEL FOR NEW TUTORIAL, WE PROVIDE SOLIDWORK AND CREO PARAMETRIC FREE TUTORIAL. ======== subscribe channel for more tutorial and also share and like video. ======== thanks for watching video..
