Conductor stringing for quad bundle, 380kV line

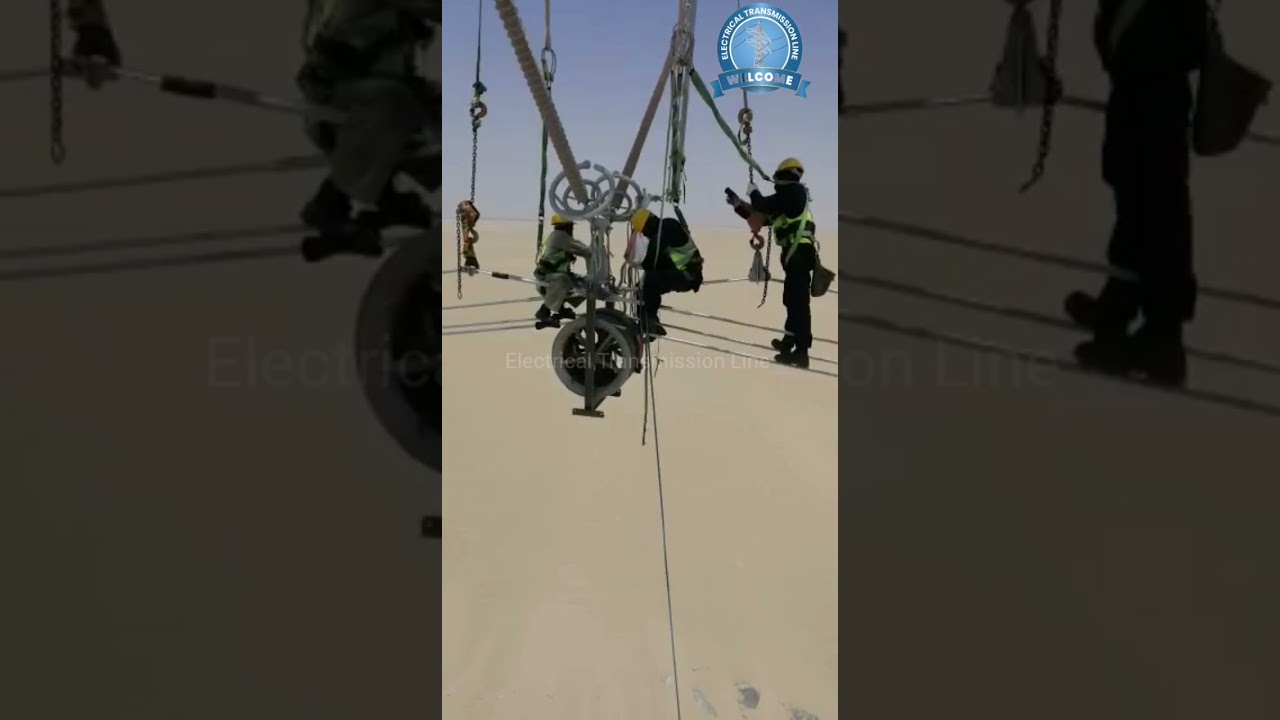

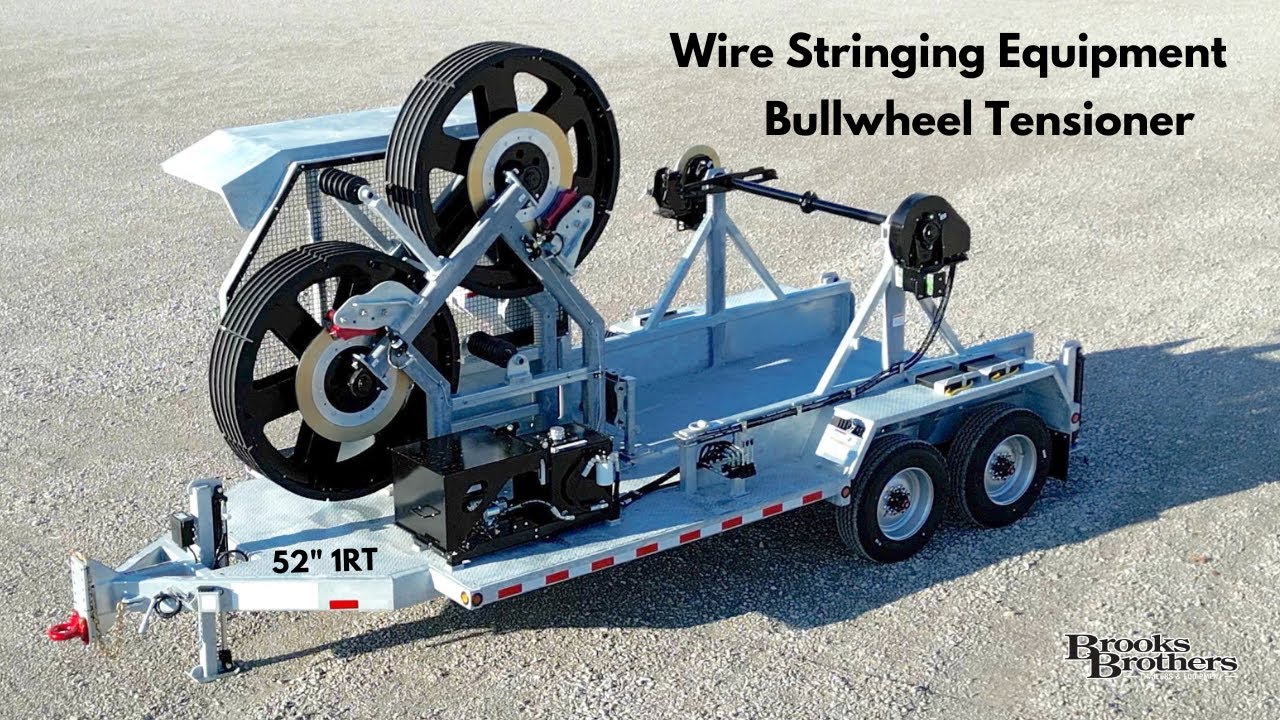

Paying out conductors for a 380kV transmission line involves using specialized equipment to ensure the conductors are properly tensioned and aligned. Here’s a general overview of the process: *Process Overview* 1. **Setup**: The puller machine is set up at one end of the transmission line section. The running board is installed on the transmission towers to provide a stable working platform for the crew. 2. **Pilot Wire Installation**: A pilot wire is first pulled through the pulleys (sheave traveler) using the puller machine. The pilot wire acts as a guide for the main conductors. 3. **Conductor Paying Out**: The main conductors are attached to the puller machine. The puller machine applies tension and pulls the conductors through the pulleys, ensuring they are properly aligned and tensioned. The V-type suspension insulators provide mechanical support and electrical insulation for the conductors. 4. **Monitoring and Adjustment**: Operators monitor the tension levels and make adjustments as needed to accommodate changes in terrain or weather conditions. Advanced tensioners come with digital controls and sensors for precise tension management. *Benefits and Importance* **Safety**: The puller machine and running board enhance worker safety by providing stable platforms and reducing the risk of conductor damage or accidental contact. **Efficiency**: These tools streamline the installation process, saving time and effort by ensuring proper tension and alignment of conductors. **Reliability**: Proper use of V suspension insulators and tensioning systems ensures the long-term reliability and performance of the transmission line. Would you like more detailed information on any specific aspect of this process
