Antenna Pattern Editor 3.0

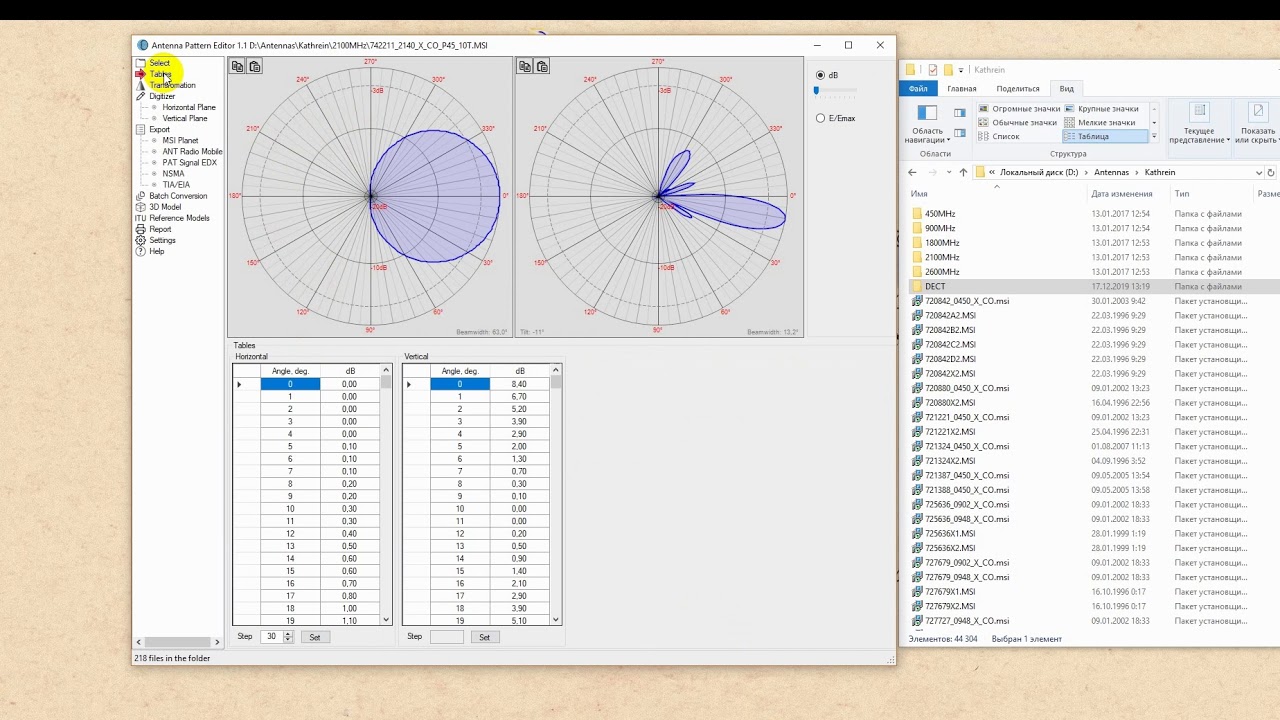

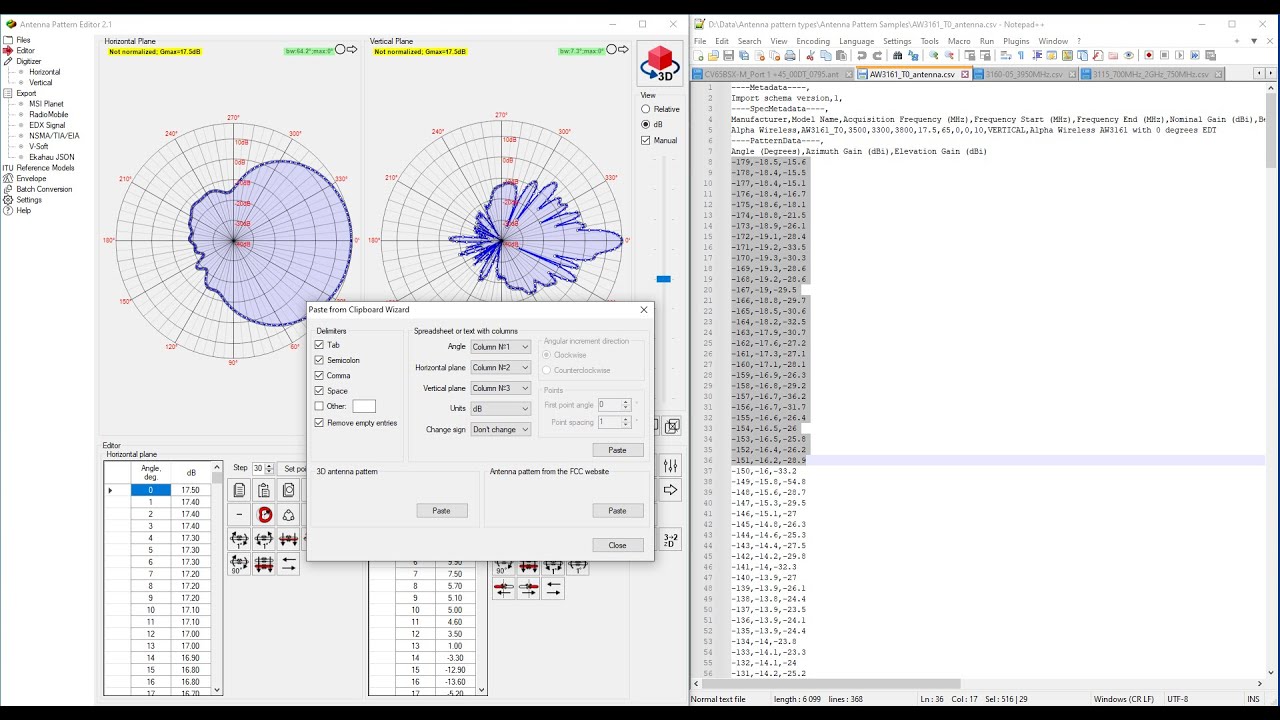

Get free trial at https://www.wireless-planning.com Antenna Pattern Editor is a versatile tool that allows you to view, create, edit, and convert antenna pattern files. The main idea behind the program is to provide users with the ability to quickly create an antenna pattern file using various methods. An antenna pattern file is a simple text or XML file that describes the main characteristics of an antenna - radiation patterns, gain, frequency range, name, manufacturer, and other data. These files are used in various wireless planning tools including our RadioPlanner, Indoor RadioPlanner, MLinkPlanner, and EMF Planner. Due to the large number of antenna pattern file formats, it often happens that an antenna pattern file in the exact format you need is not available. In this case, using Antenna Pattern Editor, you can easily convert the file to the format you need. Sometimes the antenna information is just a picture of the antenna pattern. In such cases, using Antenna Pattern Editor, you can prepare the necessary file in just a few minutes. Thanks to its simple graphical interface and cubic spline interpolation algorithm, you can get the desired file by pointing out only a few characteristic points on the downloaded image. You can use images in any raster format - png, jpg, bmp, tiff. With Antenna Pattern Editor, you can view, edit, transform and normalize antenna patterns as well as perform a number of other functions described below. Features: View 2D/3D antenna patterns in linear and logarithmic scales View text information from antenna pattern file Create/edit the antenna pattern in the table form with advanced copy and paste capabilities Create an antenna pattern from the picture (digitizing) Perform various transformations of antenna pattern (rotation, mirroring, normalize, etc.) Create of antenna patterns on various ITU-R reference models Antenna pattern report in Microsoft Word Export antenna patterns to various formats Calculation of the width of the main lobe in the horizontal and vertical plane, as well as the electrical antenna tilt Create an envelope antenna pattern file from a set of antenna patterns Antenna Pattern Editor supports most antenna pattern file formats. Both simple formats with two patterns in azimuth and elevation planes (e.g., MSI Planet, Radio Mobile V3, Ekahau *.json antenna pattern) and more complex formats with antenna patterns in different polarizations and “slice” formats (NSMA, TIA/EIA-804-B, EDX) are supported. Full 3D formats ETS-Lindgren and Satimo are also supported. Supported antenna pattern file formats: MSI Planet (*.msi, *.pla, *.pln, *.ptn, *.txt, *.ant) Radio Mobile V3 (*.ant) NSMA WG16.99.050 (*.adf *.dat *.nsma *.nsm *.txt) TIA/EIA-804-B (*.adf) EDX (*.pat) Ekahau (*.json) Atoll (*.txt) Asset (*.xml) Mentum Planet (*.pafx) AntPat (*.ana) CelPlan (*.txt) RadioSoft ComStudy (*.pt2) V-Soft (*.pat, *.vep) 3D formats: ETS-Lindgren, Satimo (*.csv)
