SMG BarCraft XA NC Three in One Busbar Processing Station Training Video

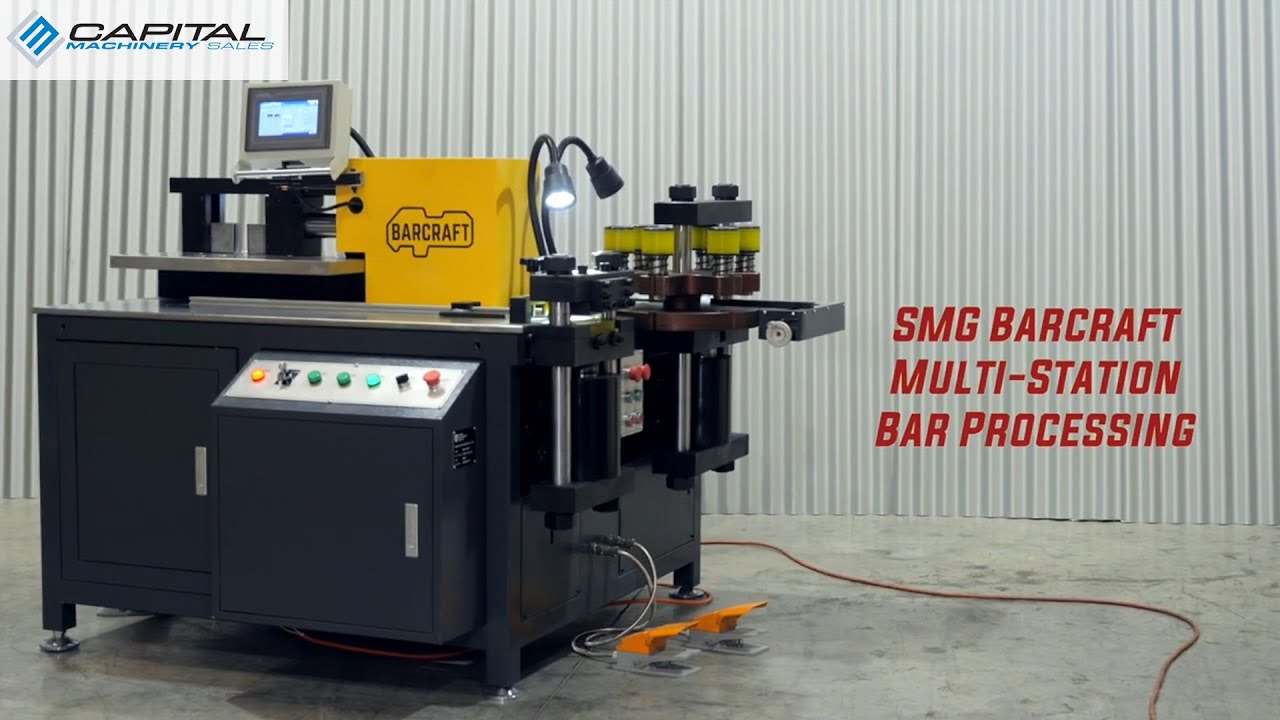

Elevate your busbar processing with the SMG-3000XA NC Three In One Busbar Processing Station. Designed to enhance metal fabrication, this machine combines cutting, punching, and bending into a single, efficient workflow. It uses three separate hydraulic power packs to deliver exceptional performance. Features • CUT–Double column shear structure The shearing station has a strong double column structure for stability and precision. Each cut is clean and smooth, without scrap, burrs, or collapse. • PUNCH—a unified six-mode turnplate featuring a tooth-shaped design. Design to enhance punch die alignment, extending their lifespan and reducing the need for frequent replacements. Utilize three precise positioning methods—coordinate axis positioning, a punch positioning pin, and a central laser pointer—to accurately locate hole centers for perfect punching. • BEND — Controlled by a SIEMENS system Controlled by an advanced SIEMENS system, the bending station provides high accuracy and can perform various bends like vertical, horizontal, U-shaped, Z-shaped, twisted, and embossing. Just input your data, and the machine completes your complex bending tasks with precision. Technical Specifications: Punching Max Punching Force (kn): 300kn Punching dia. range (mm): Ø 4.3 – Ø 25 mm Max. thickness (mm): 12mm Max. width (mm): 160mm Shearing / Cutting Max. shearing thickness (mm): 12mm Max. shearing width (mm): 160mm Vertical Bending Max. Bending Force (KN): 300mm Max. Thickness (MM): 12mm Max. Width (MM): 160mm Who is this video for? This training video is ideal for new operators, fabrication shop technicians, and anyone looking to enhance their understanding of busbar processing and the SMG-3000XA. Don't forget to like, comment, and subscribe for more industrial machinery training videos! #BusbarProcessing #MetalFabrication #SMG3000XA #CNCMachine #Punching #Bending #Cutting #IndustrialMachinery #TrainingVideo #Manufacturing Horizontal Bending Max. Width (MM): 120×10 Max. Angle (Degree): 90° Twist Bending Max. Thickness (MM): 12mm Max. Width (MM): 160mm Outer Dimension: 1900 x 1620 x 1500mm Power: 3 x 4.0kw Net Weight: 1050 kg Gross Weight: 1150 kg CNC Precision Bending Precision: ±1° Repeat Bending Precision: ±0.3° Standard Accessories: • Punching Dies: 8 sets Available Tooling Size: Round hole of punching die: Φ7, Φ9, Φ11, Φ13, Φ15, Φ17, Φ19, Φ21 (mm) Oval hole of punching die: 7×11 (mm), 9×13 (mm), 11×15 (mm), 13×18 (mm), 17×21 (mm) Customized Punching Tooling also available • Cutting Blade: 2 sets • Horizontal bending dies: 2 sets • Vertical bending dies: 2 sets • U shape bending die: 1 set • Oil filler: 1 set • Inner hexagon spanner: 1 set • Hydraulic system sealing ring: 1 set • Foot switches: 3 sets • Limit switches: 2 pieces • Punching location needle: 1 piece • Magnetic location block: 1 set • Embossing Molds: 1 set
