HP 8200 Hard Drive Replacement

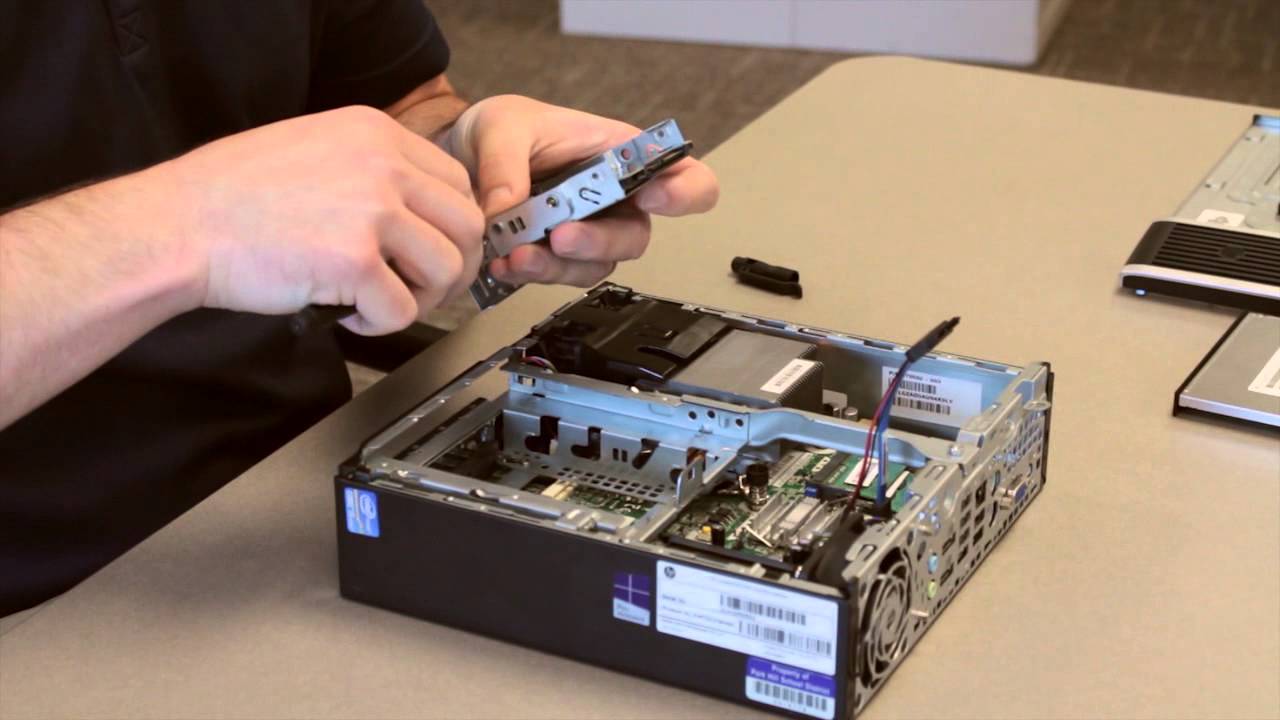

Step by step instructions: 1. Lift tab on side panel to remove. 2. Lift up the power supply to get it out of the way. 3. Lift the green tabs on the faceplate to remove it, then set it aside. 4. Lift up the optical disc drive on its hinge and let it rest out of the way. 5. Unplug both the black SATA cable and the power cable from the hard drive. 6. Push forward on the green tab beside the hard drive to release it, then lift the hard drive out of its carriage. 7. Remove the screws from the hard drive, and set aside. 8. Place the screws into the replacement hard drive. 9. Slide the hard drive back down into its carriage, and push gently until it locks into place. 10. Plug the SATA and power cables back into the hard drive. 11. Push down the optical disc drive into its original position 12. Push down the power supply back into its original position. 13. Replace the faceplate, making sure the green tabs click into place. 14. Replace the side panel.
