digiDL HX Installation

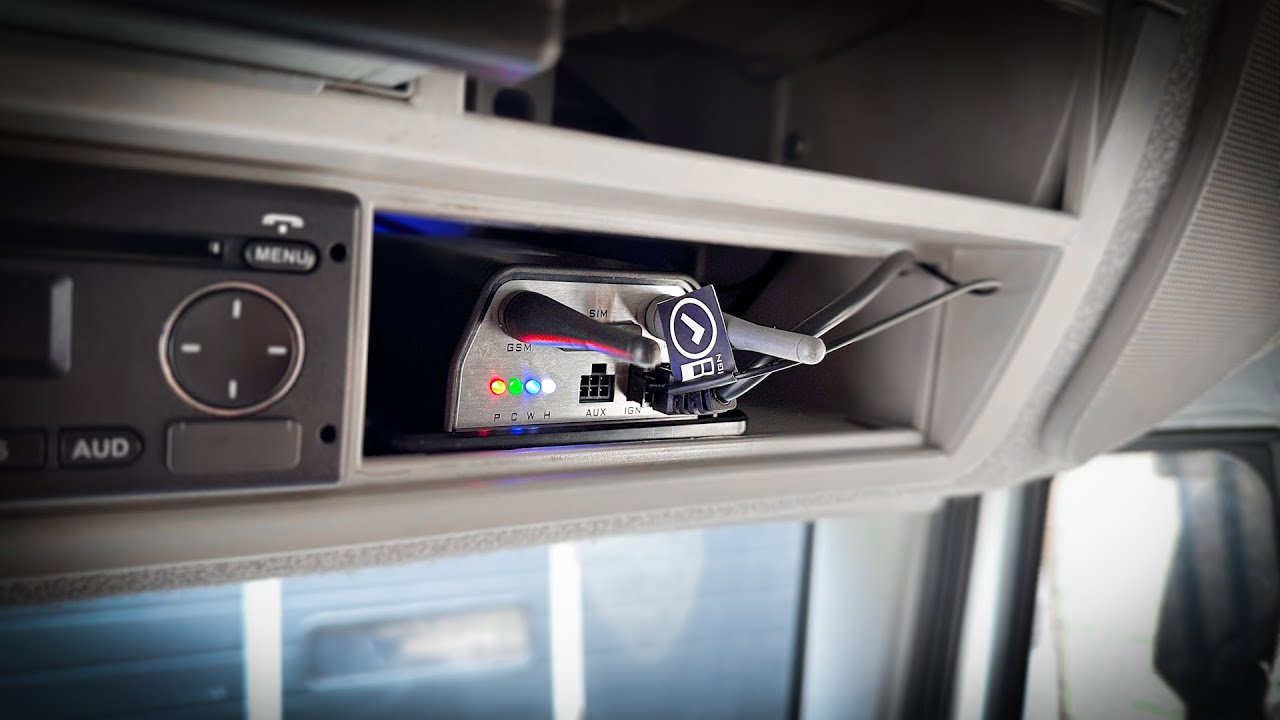

The digiDL-HX is our comprehensive tachograph remote download product that provides driver card and vehicle unit download as well as GPS and FMS data. It also generates its own secure local network to collect data from additional modules. Here's how to install it: Step 01: Remove the tachograph using the extraction tools. Step 02: Remove the white 'A' plug and the red 'C' plug (if present) from the back of the tachograph. Step 03: Insert the white plug from the ETC (Enhanced Tacho Cable) into the back of the tachograph and then connect the white vehicle plug into the ETC's connector block. Step 04: Insert the ETC's red plug into the back of the tachograph leaving the yellow plug connected to itself unless required for double-plug* installation. If there is an existing red plug, insert this into the ETC's connector block in place of the red termination plug. Step 05: Remove the slot covers and pass the ignition and 4-pin cable through the back and out of an empty slot to be used for the digiDL-HX. Step 06: Tidy the cables away and rest the tachograph in the slot. Step 07: Install both antennas to the corresponding sockets on the front of the HX, so that the antenna colour matches the washer colour. Step 08: Connect the 2-pin ignition cable into the 'IGN' port and then plug the 4-pin CAN & Power cable into the 'C+P In' port. Step 09: Turn the HX around and plug the CAN slide** cable into the FMS port. Step 10: If you have purchased our external GPS antenna, install this facing the sky, chase the cable into the slot and screw it in to the GPS port. The digiDL-HX comes with an internal antenna that in many instances provides a sufficient GPS lock. Step 11: Turn on the ignition as this allows you to fully test the digiDL-HX. Step 12: Check the lights. On the rear: Blue = Wireless comms and registration on digicentral. Green = FMS activity (this will light when there is activity on the CAN bus) White = GPS lock On the front: Red = Power Green = CAN connection to tachograph Blue = Communications - may take a few moments to check SIM and network settings and digicentral connection. White = Hub - internal WiFi network for connecting to add-on modules. Step 13: Once all the lights are on, you can secure the tachograph back into position, tidy the HX away and replace any slot covers. *Double-plug installation: For the Yellow (B) plug, if the vehicle has a conjoined A and B plug, remove the conjoined plug and insert into the ETC cable connector block (this usually affects Mercedes and Volvo vehicles). If there is a single Yellow (B) plug already in the back of the tachograph leave it in place and leave the Yellow plug looped to itself. **It is possible to order the digiCAN-Slide [https://www.tachosys.com/Product/digi...] which captures the FMS data available on the CAN bus. This cable needs to be fitted to the CAN Hi and CAN Lo white cables on the ETC. Find out more here - https://www.tachosys.com/digiDL-HX For any questions please contact us at enquiry@prosysdev.com
