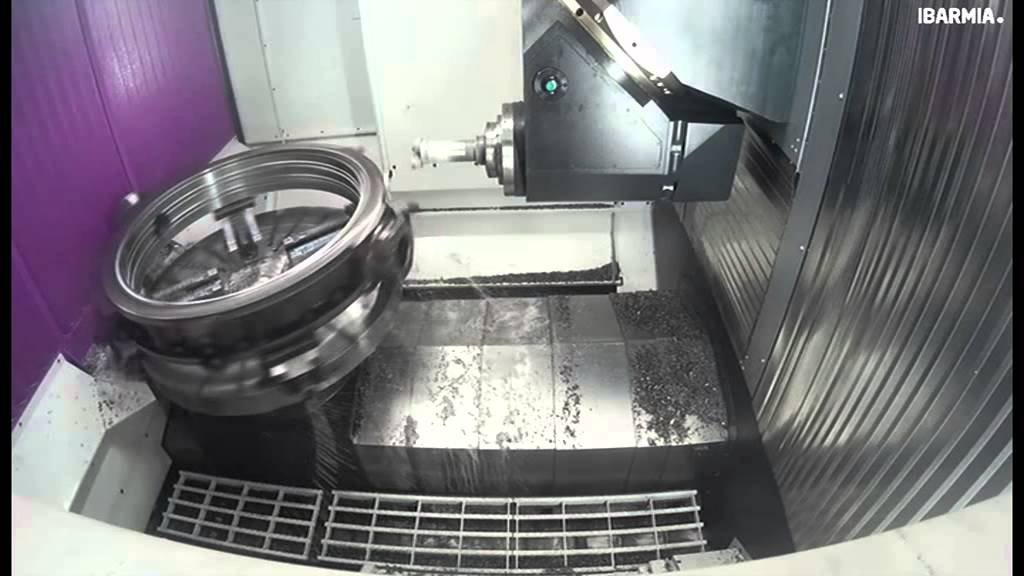

IBARMIA THC 22 Universal 5 Axis Machining Centre Available at Dugard UK

http://www.dugard.com for more information Power, accuracy and dynamics combined with excellent chip evacuation, ergonomics and intelligent production functions. Spindle tapers Table size 1250 x 1250 mm Maximum load capacity 10.000 Kg SK-50 • BT-50 • HSK 100 • CAPTO 8 Axis travels X • From 1200 to 3600 mm / Y • From 1100 to 2300 mm Z • From 1000 to 1900 mm B • -15º/+195º / A • -45º/+135º Spindle Up to 84 kW - 12.000 rpm INCLUDED ITEMS IN STANDARD CONFIGURATION • Direct measuring on linear axes X / Y / Z. • Measuring by rotary scale on rotary axes B / C / A. • Travelling on lineal guides and ball screws. • Servomotors with braking system for the axes. • Hydraulic counter weight for the head. • Electro spindle thermal compensation. • 60 tool ATC magazine. • Air blast for tool cleaning. • Totally encapsulated working area. • Vertical covers on X axis (steel bellows). • Illumination of working area. • Longitudinal endless screws for chip evacuation. (double screw in T36-T30 models). • Rotary control panel. • Touch screen 19”. • Chip Conveyor with integrated coolant tank. • External coolant system around the spindle. • Programmable central lubrication system. • Climatized electrical cabinet. • Stairs to machine access. • Machine levelling elements. • Informative cartel in black methacrylate. • SMART POINT machine data monitoring system. OPTIONAL ITEMS • Coolant through spindle. • ATC magazines up to 240 tools. • Special tool magazines up to 400 positions managed by arm robot. • Automatic pallet changer APC (rotopallet, pallet-pool). • Tool measuring and touch systems. • Steam and mist aspiration system. • Spray and air guns. • “Illumination” pack: LED lights with acoustic signal integrated into the machine. • 3 light tower with acoustic signal. • Camera settings and display mode. • CNC control with touch screen up to 24”. • Advanced HMI. • Portable electronic hand-wheel with support in the control panel. http://www.dugard.com for more information
